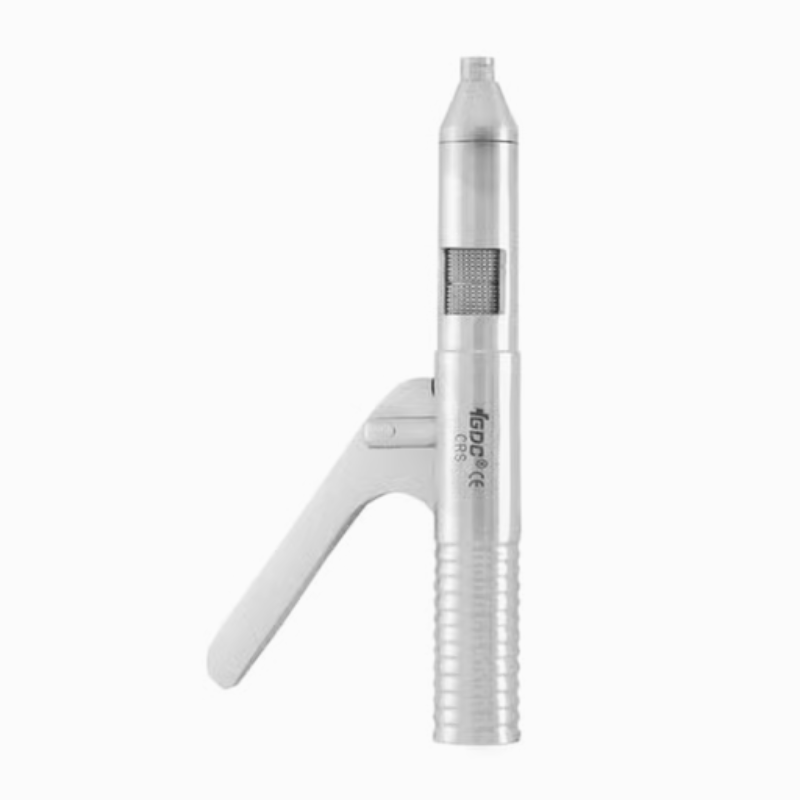

GDC Automatic Crown Remover Standard (CRS)

GDC Automatic Crown Remover Standard (CRS) is a spring-loaded mechanical crown and bridge removal instrument designed to facilitate the removal of cemented crowns, bridges, and other fixed dental restorations. The device works by generating a controlled impulse through the selected tip, helping break the cement seal between the restoration and the underlying tooth without directly striking the restoration.

The ergonomic design provides comfortable handling and improved operator control, while the bayonet attachment system allows different hooks and wire tips to be fitted quickly. Its intensity adjustment mechanism enables the operator to control the impulse according to the clinical situation.

The kit includes multiple tip designs that allow engagement at different areas of crown margins. A dedicated flexi-wire system and bridge-removing tip can also be used for bridge removal. The instrument can be used for permanently cemented crowns and bridges, provisional restorations, Maryland bridges, orthodontic brackets and bands, and removable appliances fixed to abutments.

The GDC Automatic Crown Remover Standard is suitable for prosthodontic procedures in dental clinics, hospitals, dental colleges, and oral rehabilitation practices.

• Spring-loaded automatic crown and bridge removal system

• Designed for removal of bonded crowns and bridges using controlled impact force

• Ergonomic design for improved grip and handling

• Bayonet attachment allows quick insertion of hooks and wire tips

• High-frequency micro-strokes for efficient crown removal

• Up to 20 movements per second for rapid operation

• Non-reloading mechanism maintains a constant working axis

• Adjustable intensity ring allows controlled application of impulse force

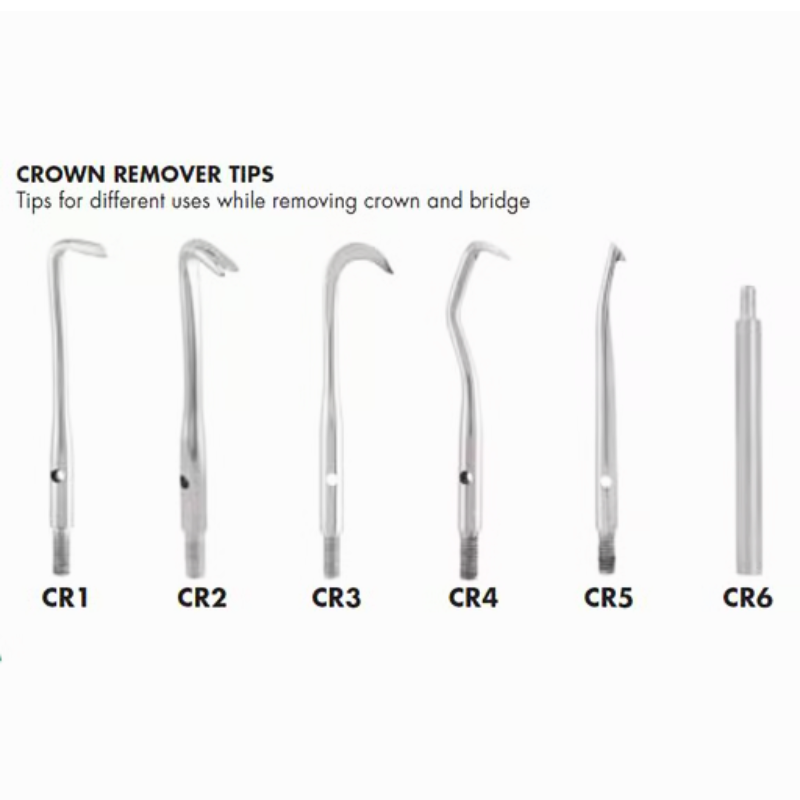

• Multiple interchangeable tips for different crown and prosthesis configurations

• Special bridge-removing wire system for removing bridges

• Suitable for permanently and temporarily cemented restorations

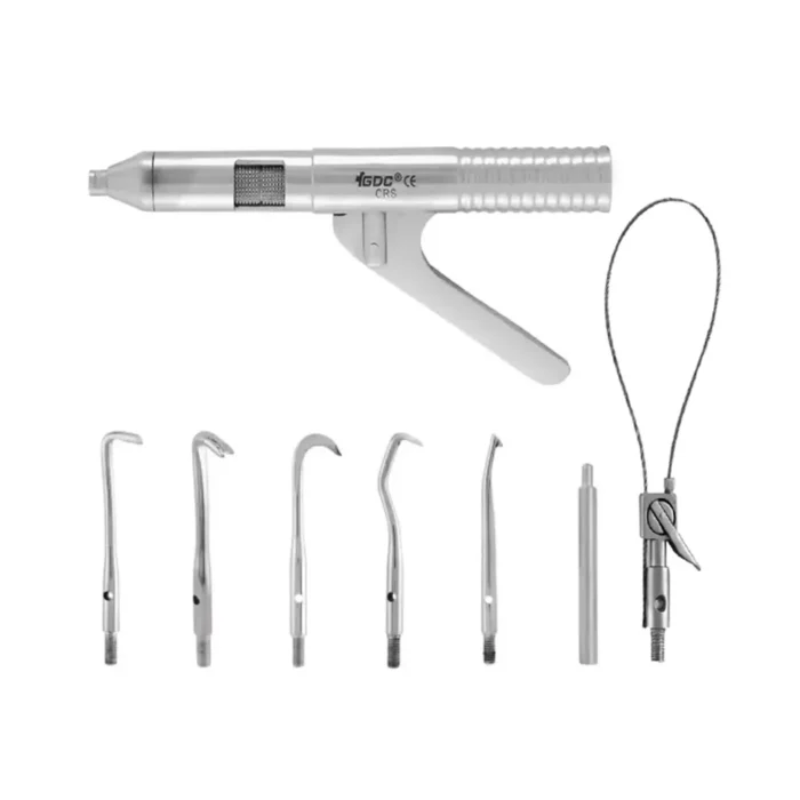

• 1 × Crown & Bridge Remover CRS

• 1 × Tip CR1

• 1 × Bifid Tip CR2

• 1 × Sickel Tip CR3

• 1 × Angle Tip CR4

• 1 × Inverted Curved Tip CR5

• 1 × Straight Tip CR6

• 1 × Bridge Remover Flexi Wire Set CR7

• 1 × Bridge Remover Tip with Lock CR8

• 1 × Tip Adjustment Key CR9

• 1 × Open-End Adjustment Wrench CR10

• Product Name: Automatic Crown Remover Standard

• Model: CRS

• Brand: GDC

• Type: Spring-Loaded Automatic Crown & Bridge Remover

• Operation: Mechanical / Spring-Loaded Impulse

• Intensity: Adjustable

• Micro-Stroke Frequency: Up to 20 movements per second

• Attachment: Bayonet-Type Attachment

• Tips Included: Multiple Interchangeable Tips

• Bridge Removal: Flexi-Wire System Included

• Application: Crown and Bridge Removal

• Suitable For: Fixed Crowns, Bridges, Provisional Restorations, Maryland Bridges, Orthodontic Appliances

• Country of Origin: India

• Select the appropriate tip according to the restoration and clinical situation.
• Attach the selected tip securely to the crown remover.
• Engage the tip with the appropriate area of the crown or restoration.
• Adjust the impulse intensity according to the clinical requirement.
• Activate the spring-loaded mechanism to apply a controlled impulse.
• Continue with controlled impulses until the cement seal is sufficiently disrupted.
• For bridges, use the supplied flexi-wire system and appropriate bridge-removing tip.
• After the procedure, clean and sterilize reusable components according to the manufacturer’s instructions.

6-month warranty against rust.
