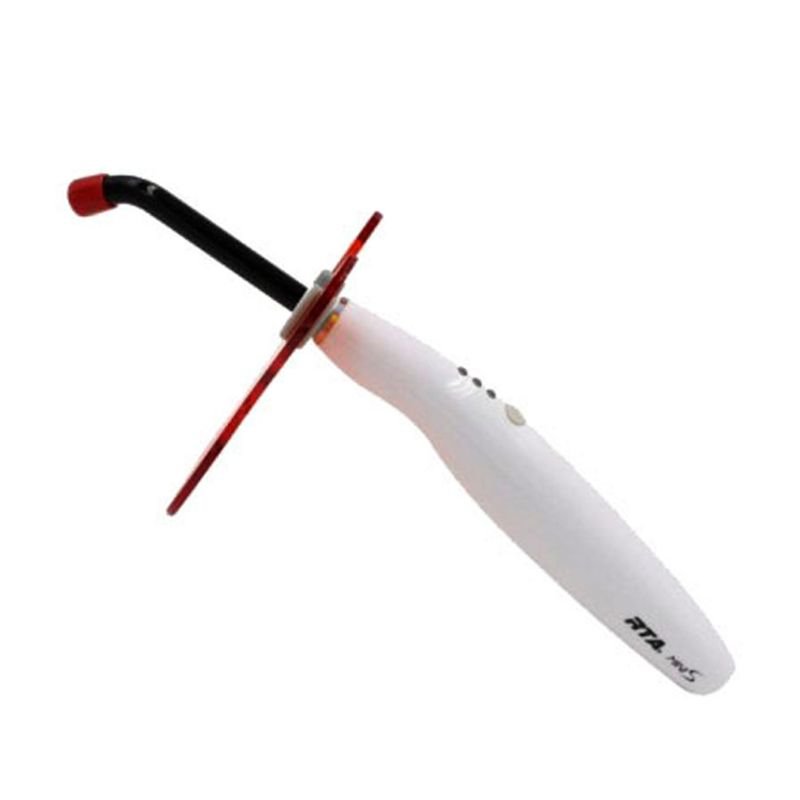

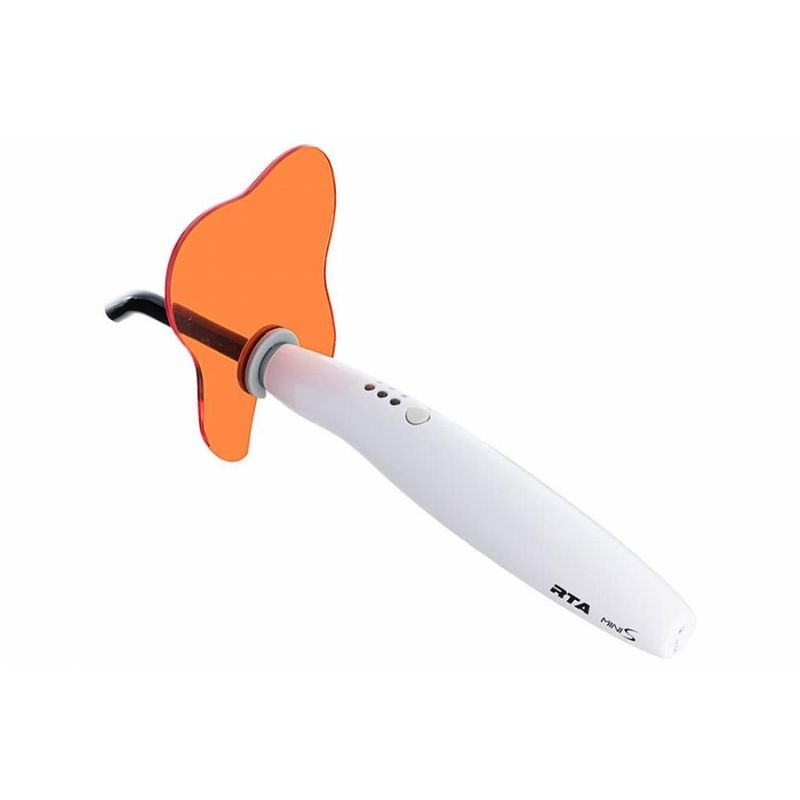

Woodpecker Mini S Light Cure LED

The Woodpecker Mini S Light Cure LED is a compact, cordless dental curing light designed for the polymerization of compatible light-cured resin materials used in restorative dentistry. Its ergonomic body and lightweight construction make it convenient to hold and operate during routine clinical procedures.

The unit uses a 3W high-power blue LED with a 420–480 nm wavelength range and a light intensity of 1000–1200 mW/cm². This combination is designed to provide consistent illumination for efficient curing of suitable dental restorative materials.

The Mini S features simple button-based operation with selectable 5, 10, and 20-second curing modes. A countdown timer indicates the remaining curing time, while the curing cycle can be interrupted by pressing the operating button. Its rechargeable battery provides extended operating convenience, with over 300 cycles possible in 10-second mode on a full charge.

Its compact design makes the Woodpecker Mini S suitable for dental clinics, restorative procedures, dental colleges, and other clinical environments where a portable LED curing light is required.

• Compact and ergonomic cordless LED curing light designed for dental restorative procedures.

• High-power 3W blue LED provides consistent light output for efficient dental resin polymerization.

• Wavelength range of 420–480 nm is suitable for curing compatible light-cured dental materials.

• Adjustable curing time with 5, 10, and 20-second time settings for convenient clinical operation.

• Extended battery performance supports more than 300 curing cycles in 10-second working mode on a full charge.

• Simple one-button operation for easy activation and time selection.

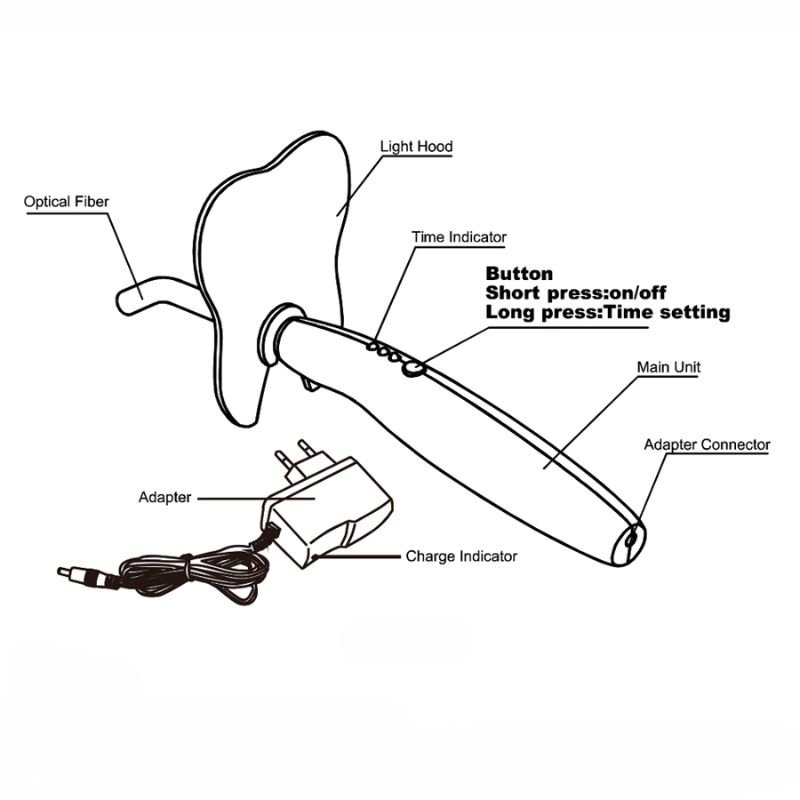

• Special light hood and holder design helps provide efficient light filtering during curing.

• Lightweight and portable design allows easy handling and movement between treatment areas.

• Constant light-intensity output supports consistent curing performance.

• 1 × Woodpecker Mini S LED Curing Light

• 1 × Guide Rod / Optical Fiber Tip

• 1 × Light Shield / Light Slide

• 1 × Power Adapter

• 1 × Lithium Battery

• 1 × Charging Dock

• 1 × Operating Manual

• 1 × Guarantee Card

• Product Name: Woodpecker Mini S Light Cure LED

• Brand: Woodpecker

• Product Type: LED Dental Curing Light

• LED Power: 3W High-Power Blue LED

• Wavelength: 420–480 nm

• Light Output: 1000–1200 mW/cm²

• Light Intensity: 1000–1200 mW/cm²

• Light Effective Area: 50 mm²

• Battery: 3.7V / 1400mAh

• Battery Type: ICR 18490

• Power Input: AC 100–240V, 50/60Hz

• Power Output: DC 4.2V / 1A

• Net Weight: 105 g

• Dimensions: 230 × 26 × 30 mm

• Curing Time Settings: 5 seconds, 10 seconds, 20 seconds

• Operation: Cordless / Rechargeable

• Charging: Charging Dock / Power Adapter

• Fully charge the Mini S curing light before its first use or when the battery is low.
• Attach the guide rod or optical fiber to the curing unit correctly.
• Press the operating button to switch on the curing light.
• Select the required curing time by entering the time-setting mode and choosing 5, 10, or 20 seconds.
• Position the blue light guide close to and directly over the area requiring resin polymerization.
• Press the button to begin the curing cycle. The countdown timer will indicate the remaining curing time.
• Keep the light guide positioned appropriately throughout the curing cycle and follow the recommended curing time for the dental material being used.
• Press the operating button to stop the curing cycle when necessary.
• Allow the unit to cool when required and avoid excessive consecutive operation cycles.
• After use, clean the optical fiber/guide rod with a soft cloth and store the curing light safely.
• When the battery is low, recharge the unit using the supplied power adapter and charging system.

• Product should be used, cleaned, charged, and maintained according to the manufacturer’s instructions.

• Recharge the battery using the supplied or compatible charging equipment.

• Keep the optical fiber and light-emitting components clean for consistent light transmission.

• Avoid dropping the curing light or exposing the electronic body to liquids.

• Warranty coverage is subject to the applicable manufacturer/importer warranty terms.

• Physical damage or damage resulting from improper use may not be covered under warranty.
