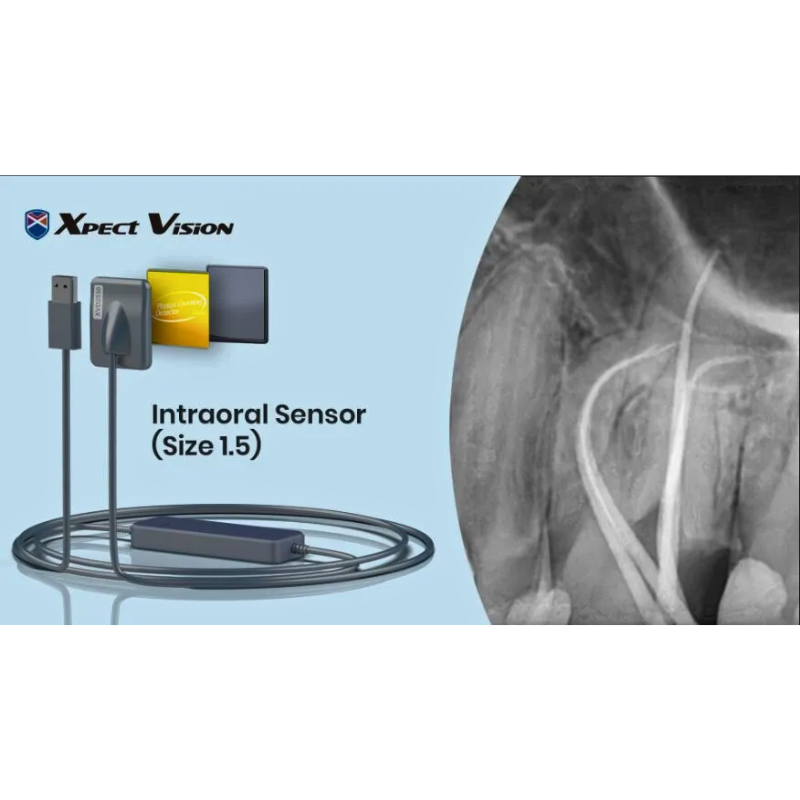

Xpect Vision RVG Sensor for Digital Dental X-Ray Imaging – Size 1.5

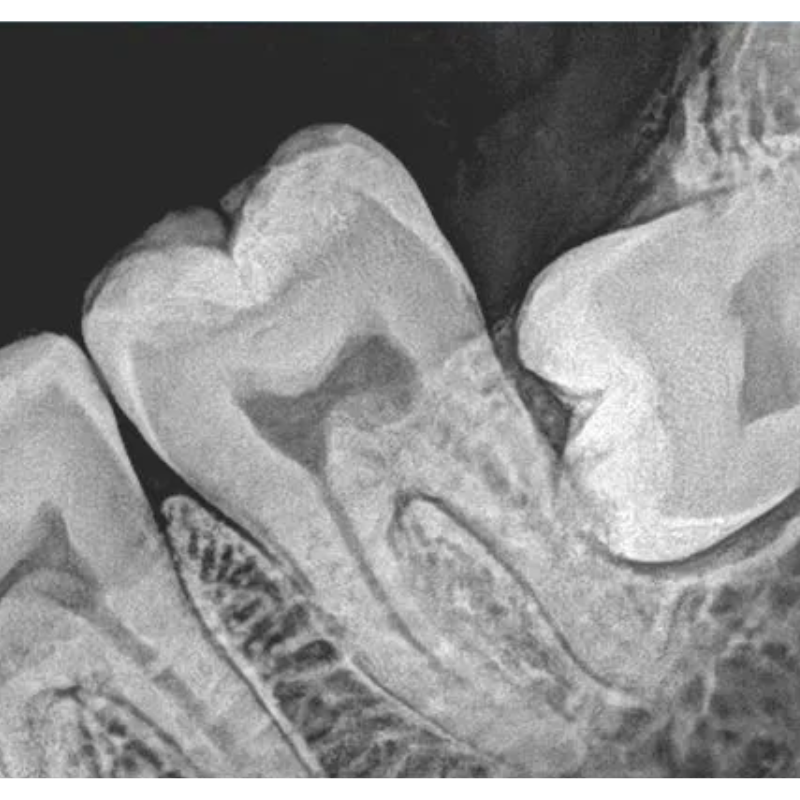

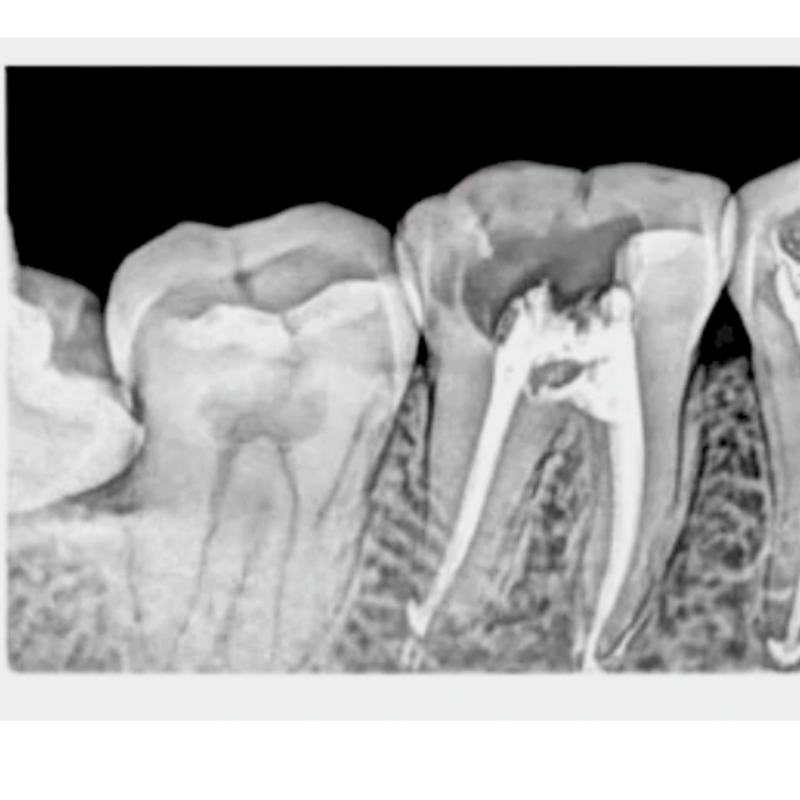

Xpect Vision RVG Sensor for Digital Dental X-Ray Imaging – Size 1.5 is an advanced digital intraoral X-ray sensor designed for fast, reliable, and high-quality dental radiographic imaging. It uses Photon-Counting Direct Conversion technology to capture X-ray information directly, helping provide clear and stable digital images.

The sensor features a 16-bit dynamic range and an actual resolution of 14–16 lp/mm. Its Size 1.5 configuration provides an effective imaging area of 25 × 30 mm, making it suitable for a wide range of routine intraoral radiographic applications.

With approximately 3-second image capture, IP68 protection, shock-resistant construction, and a reinforced cable, the sensor is designed for regular use in busy dental clinics. The sensor has also been tested for more than 500,000 exposures and over 100,000 cable bending cycles.

The sensor supports multiple image formats and connects through USB 2.0. It is compatible with Windows 7, Windows 8, and Windows 10 and is designed to be self-installable. Technician support is available for an additional fee if required.

• Advanced AI-powered digital intraoral X-ray sensor

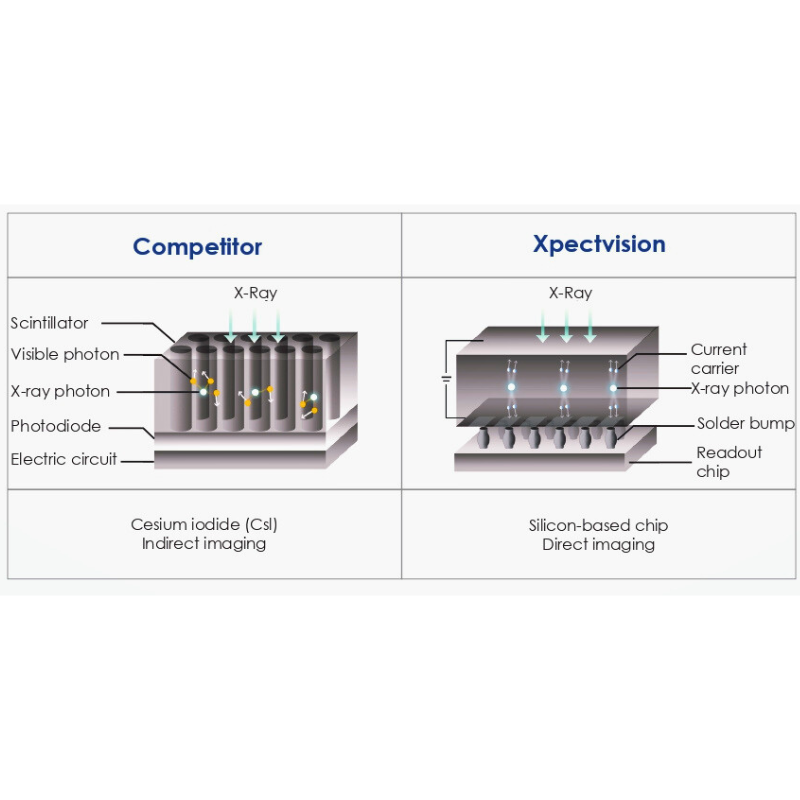

• Photon-Counting Direct Conversion technology for direct X-ray imaging

• Reduces light scattering associated with conventional indirect sensors

• Broad dynamic range for consistent clinical image quality

• Adjustable image contrast and brightness

• Silica-based chip technology for reduced image blurring

• Tested for over 500,000 exposures

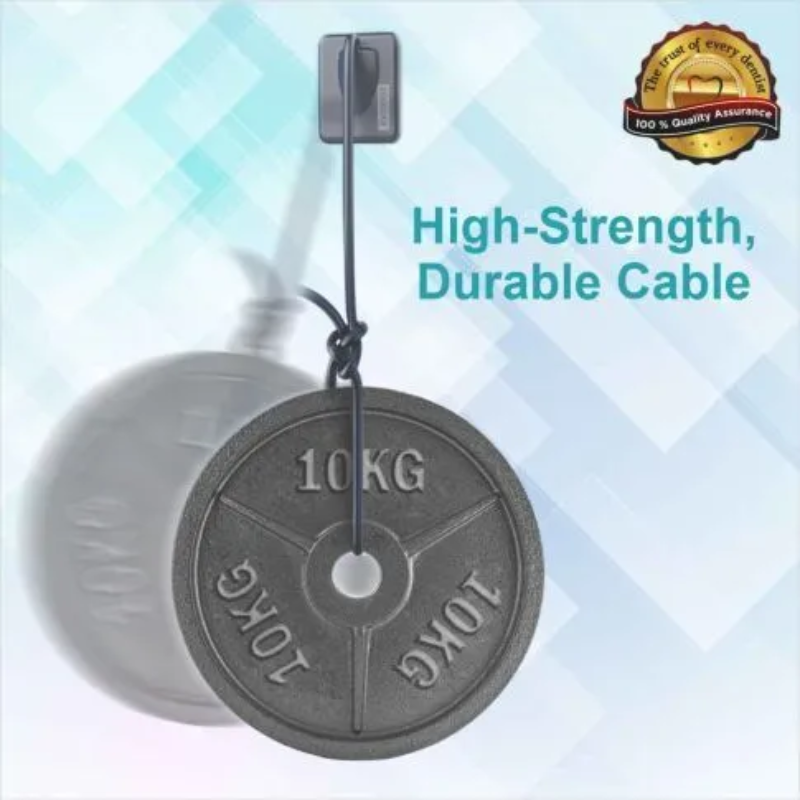

• Reinforced cable tested for 100,000+ bending cycles

• Shock-resistant and waterproof casing

• IP68 waterproof protection

• Thin sensor design for easier intraoral placement and improved patient comfort

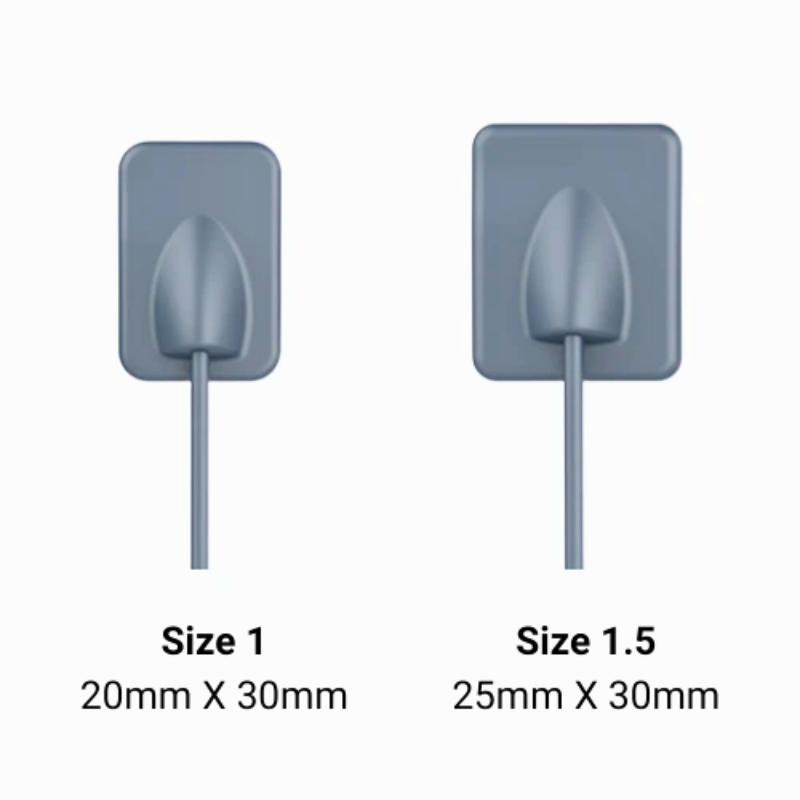

• Available in different sizes for adult and pediatric imaging requirements

• Compatible with sensor positioners for accurate placement

• Fast image acquisition in approximately 3 seconds

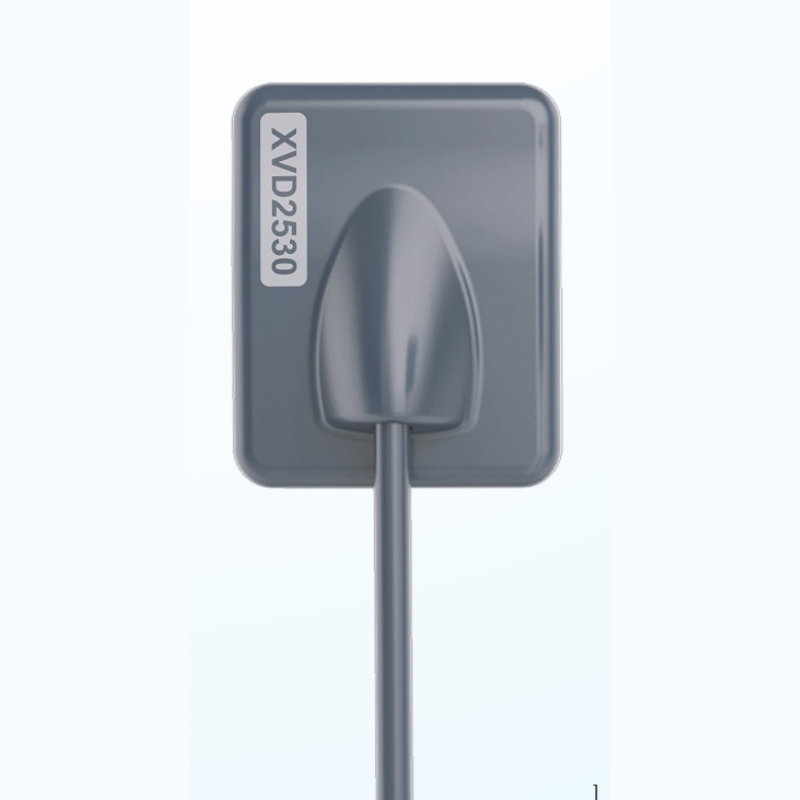

• 1 × Xpect Vision RVG Sensor – Size 1.5

• 1 × Instruction Manual

• Standard Manufacturer Packaging

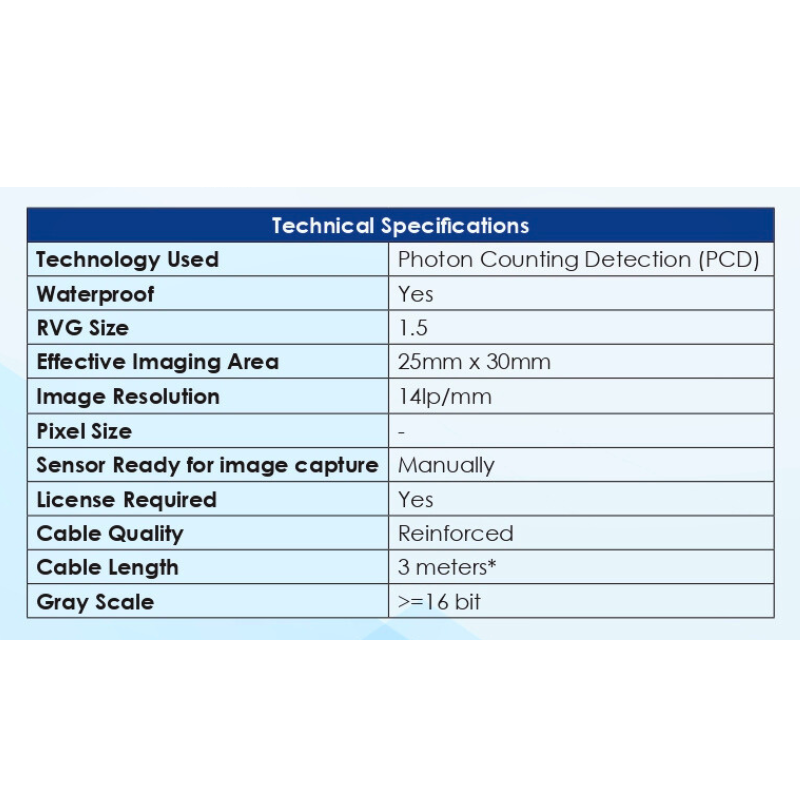

• Product Name: Xpect Vision RVG Sensor for Digital Dental X-Ray Imaging

• Brand: Xpect Vision

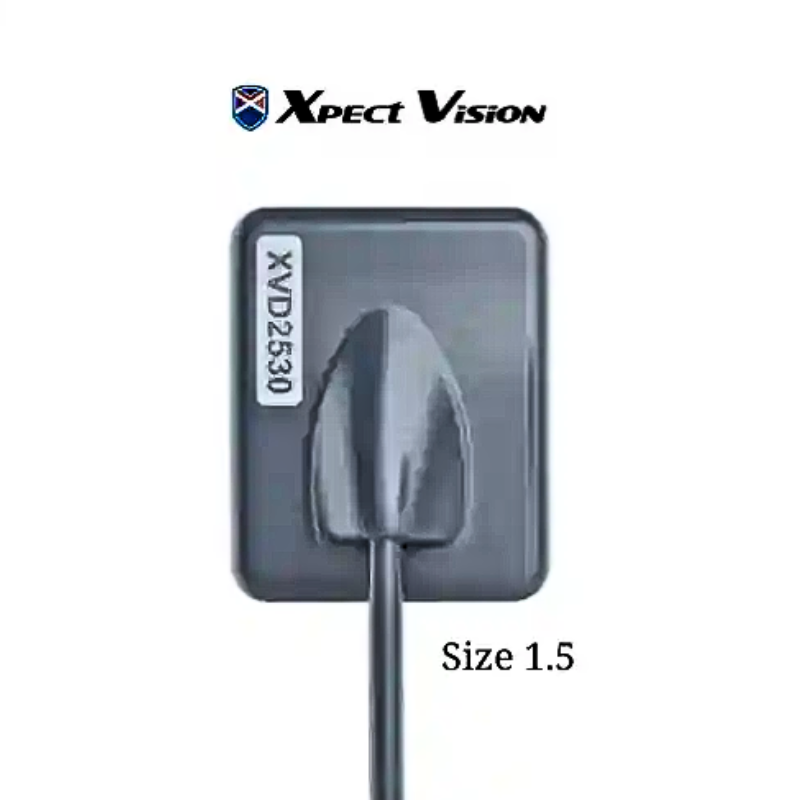

• Model/Size: Size 1.5

• SKU: XVD2530

• Type: Digital Intraoral X-Ray Sensor / RVG

• Technology: Photon-Counting Direct Conversion

• Dynamic Range / Grayscale: 16-bit

• Actual Resolution: 14–16 lp/mm

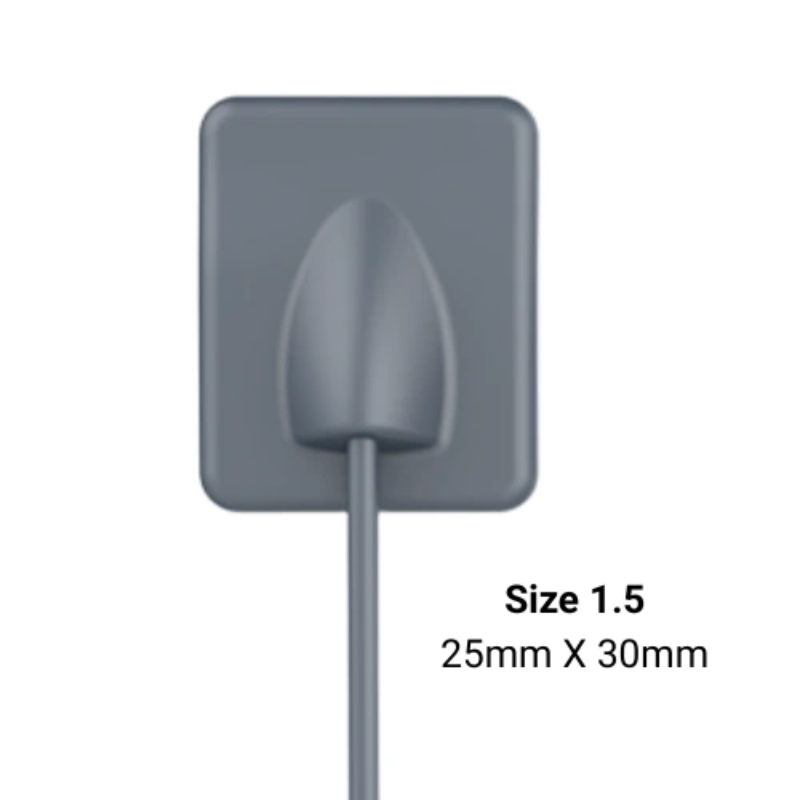

• Effective Imaging Area: 25 × 30 mm

• Sensor Thickness: 6 mm

• Image Capture Time: Approximately 3 seconds

• Image Formats Supported: BMP, DIR, DCM, JPEG, PNG, TIFF

• Connection Type: USB 2.0

• Cable Length: 3 meters, extendable

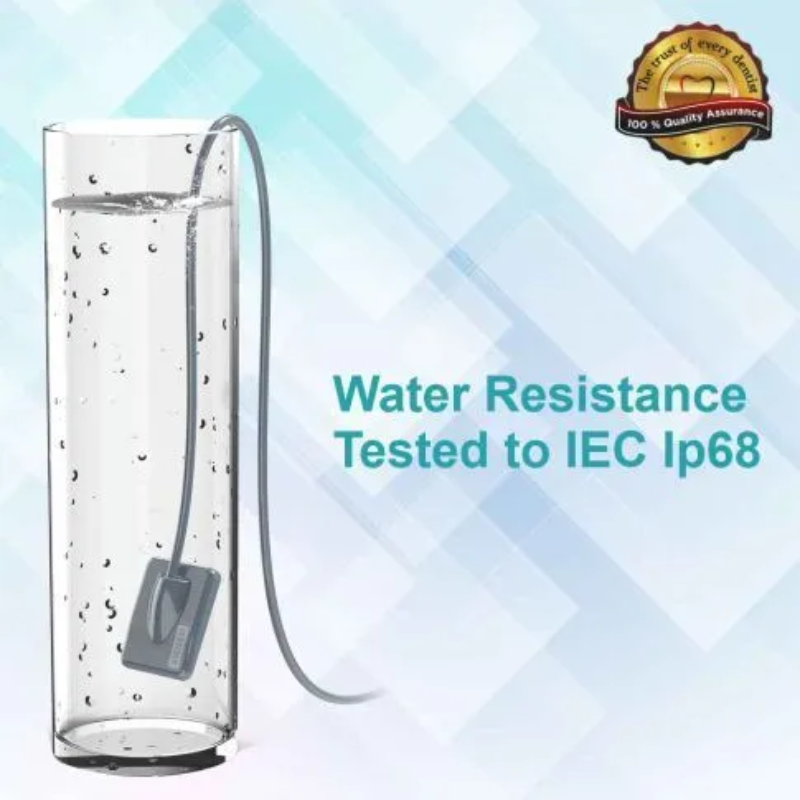

• Waterproof Rating: IP68

• Operating System Support: Windows 7, 8 & 10

• Installation: Self-installable

• Application: Digital Intraoral Dental Radiography

• Suitable For: Dental Clinics, Hospitals, Dental Colleges & Diagnostic Practices

• Connect the Xpect Vision sensor to a compatible computer using the USB connection.
• Install and open the compatible imaging software.
• Position the Size 1.5 sensor intraorally according to the required radiographic projection.
• Position the X-ray tube correctly and follow applicable radiation-safety protocols.

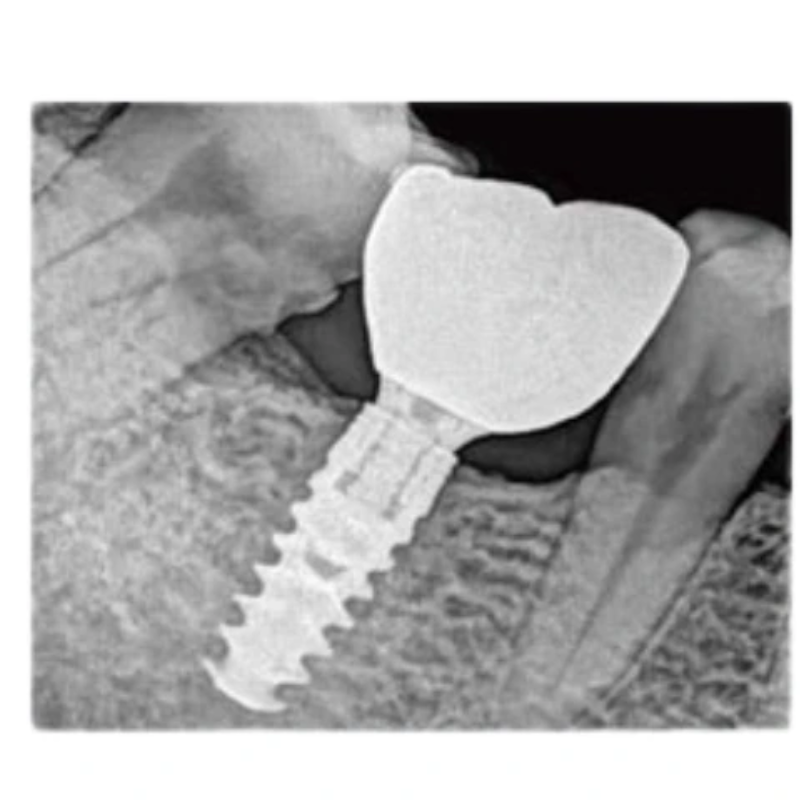

• Capture the required intraoral radiograph.
• Review the image using the compatible imaging software.
• Adjust image brightness and contrast as required for diagnostic viewing.
• Save or export the image in the required supported format.
• Clean and disinfect the sensor according to the manufacturer’s recommended procedure.
• Avoid excessive bending, twisting, or pulling of the sensor cable.

• Product supplied in original manufacturer packaging.

• 5 Years Manufacturer/Importer Warranty.

• Service and warranty are handled directly by the manufacturer/importer.

• Warranty coverage is subject to applicable manufacturer/importer terms and conditions.
