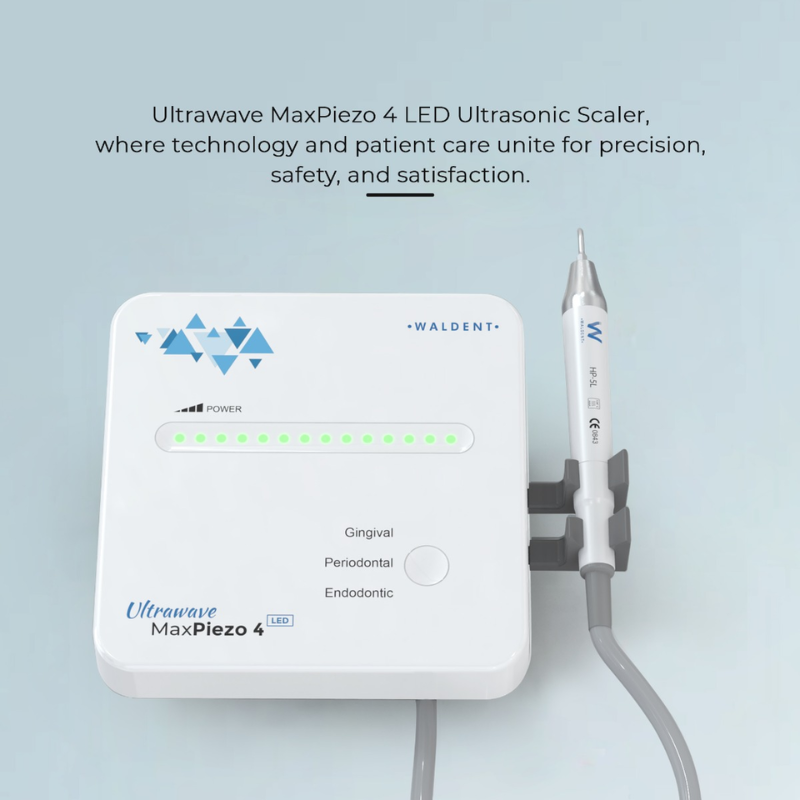

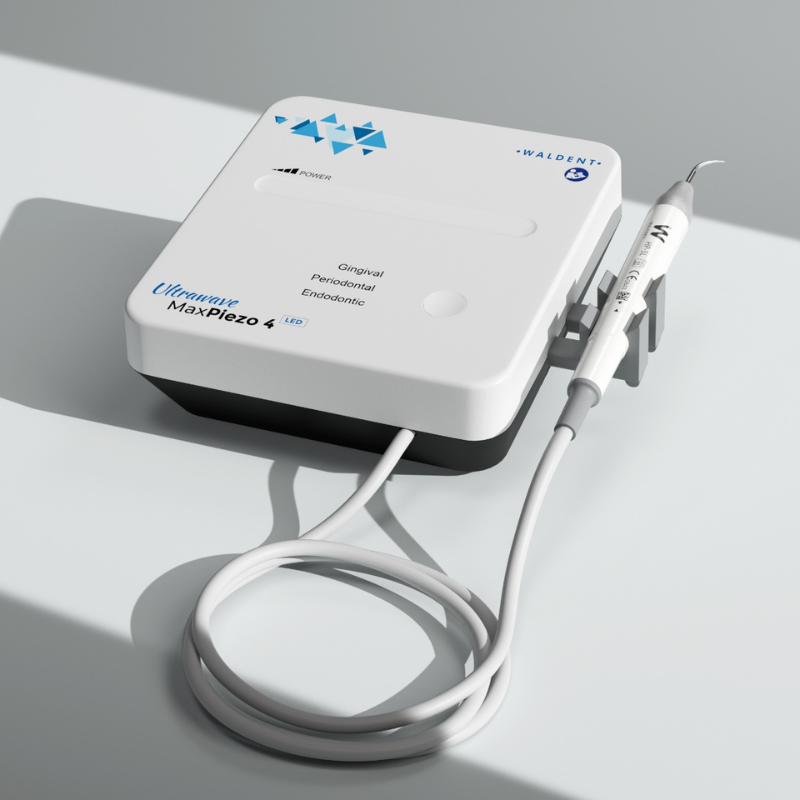

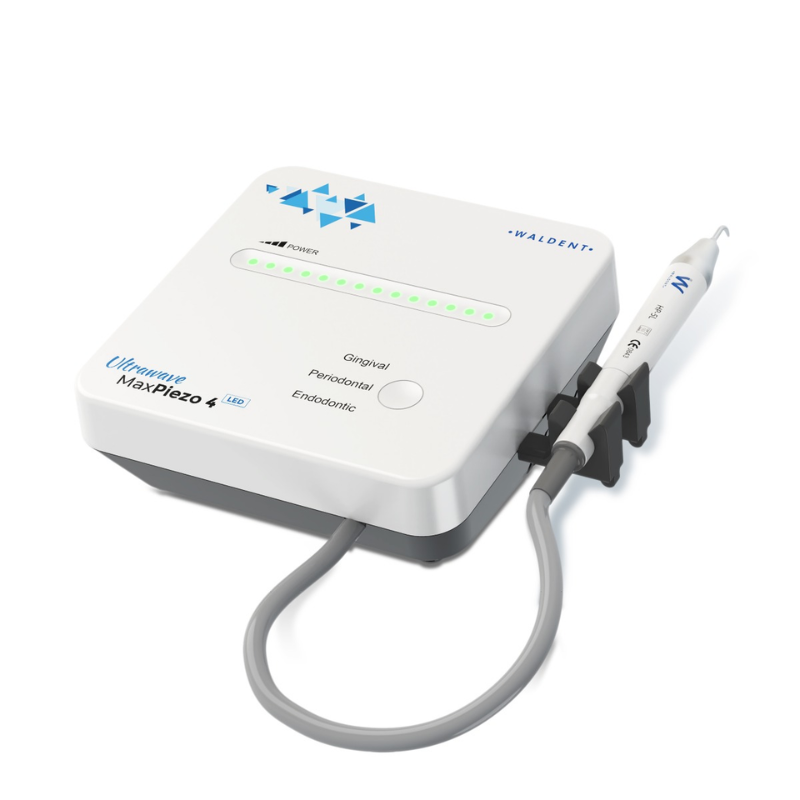

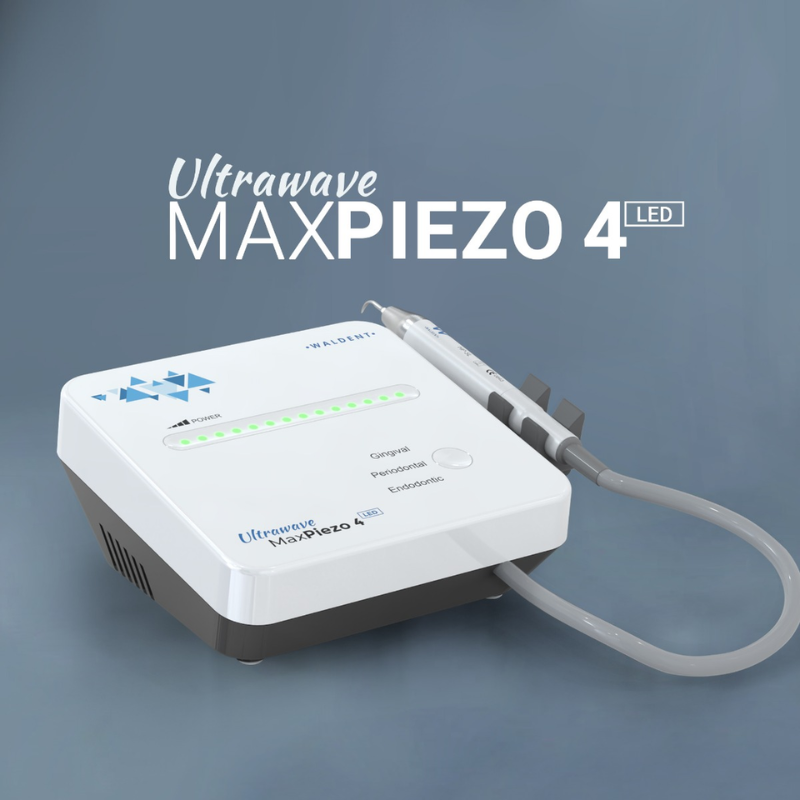

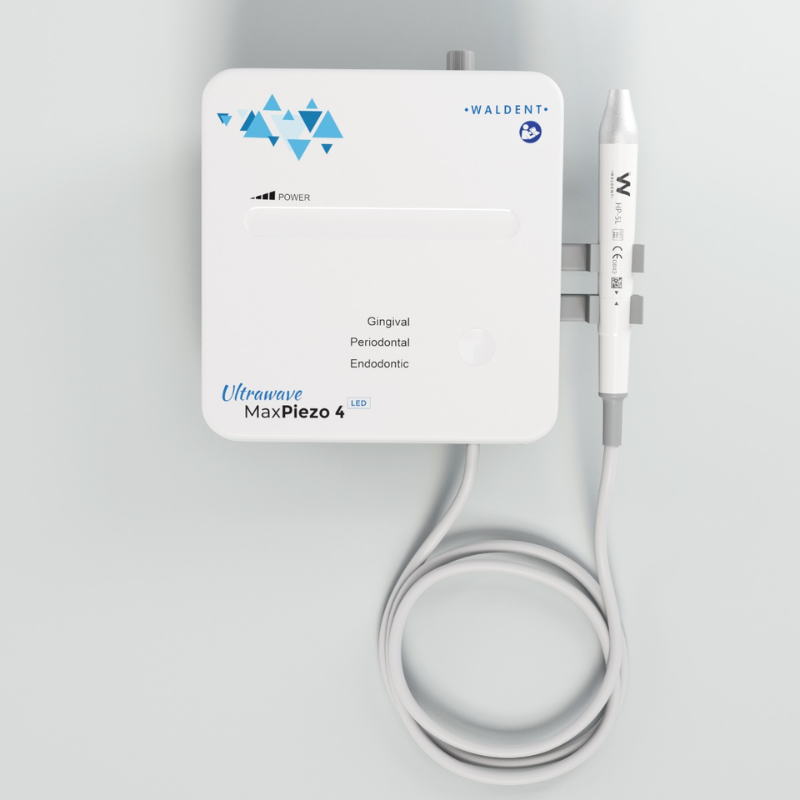

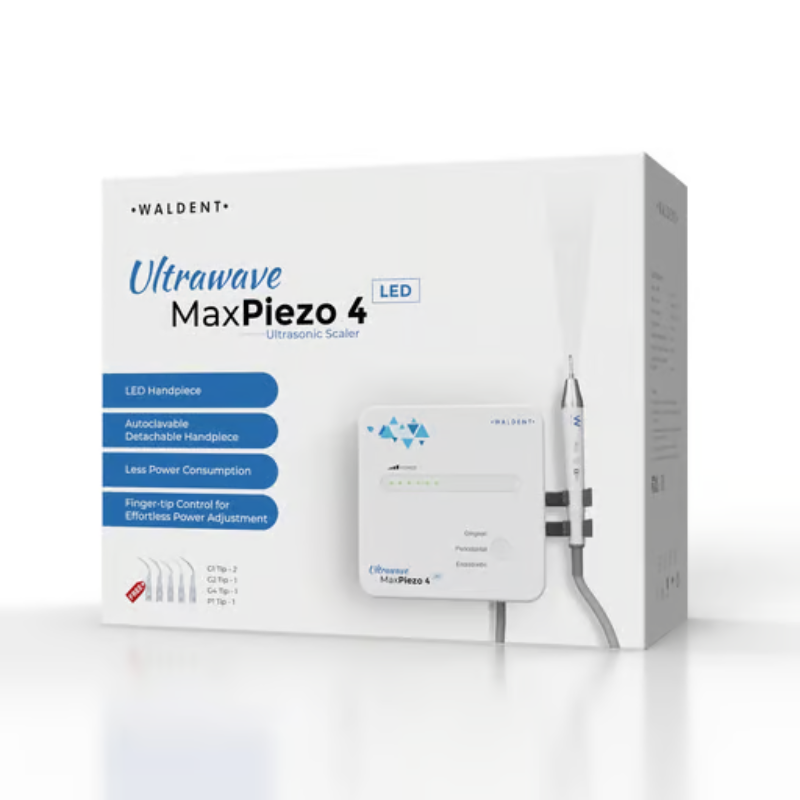

Waldent Ultrawave MaxPiezo 4 LED Ultrasonic Scaler

The Waldent Ultrawave MaxPiezo 4 LED Ultrasonic Scaler is a fiber-optic piezoelectric ultrasonic scaler designed for efficient plaque and calculus removal with enhanced treatment visibility. Its integrated LED handpiece illuminates the working area, helping the dental professional maintain better visual control during scaling procedures.

The unit uses piezoceramic ultrasonic technology and automatic frequency tracking to optimize performance during clinical use. Four different power settings provide flexibility for different treatment requirements and patient sensitivity. The scaler is designed for gingival and subgingival cleaning, supragingival scaling, and root canal irrigation applications.

Its detachable ergonomic handpiece supports convenient handling, maintenance, cleaning, and sterilization. The inbuilt irrigation system provides water during operation, while compatible tips allow the unit to be used for different clinical applications, including supragingival and subgingival scaling and endodontic irrigation.

The Waldent Ultrawave MaxPiezo 4 LED is suitable for dental clinics, hospitals, periodontal procedures, prophylaxis, and dental teaching environments requiring a versatile piezo ultrasonic scaling system.

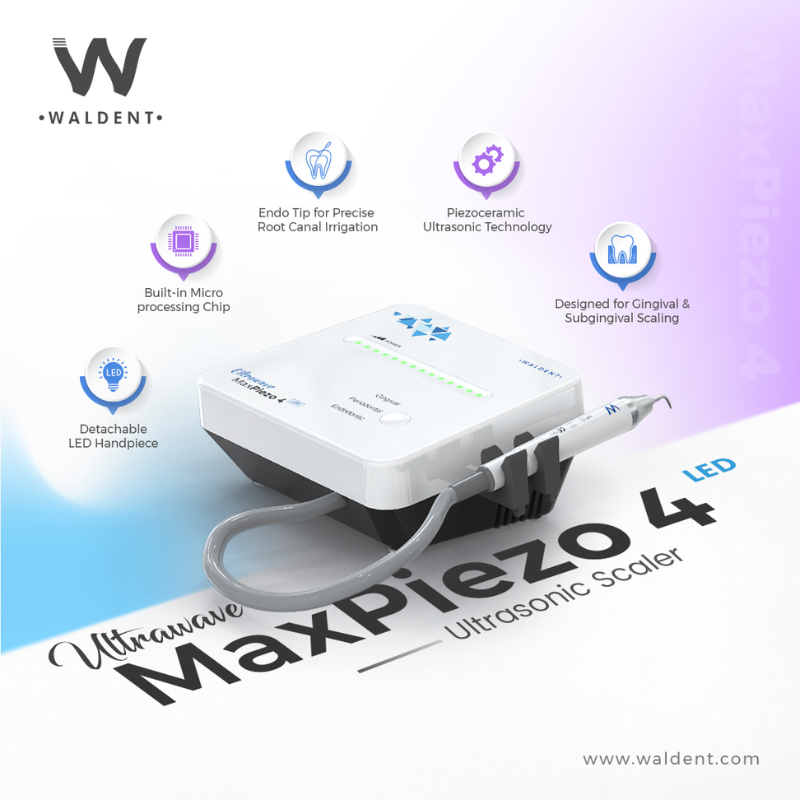

• Advanced piezoceramic ultrasonic technology for efficient dental scaling and calculus removal.

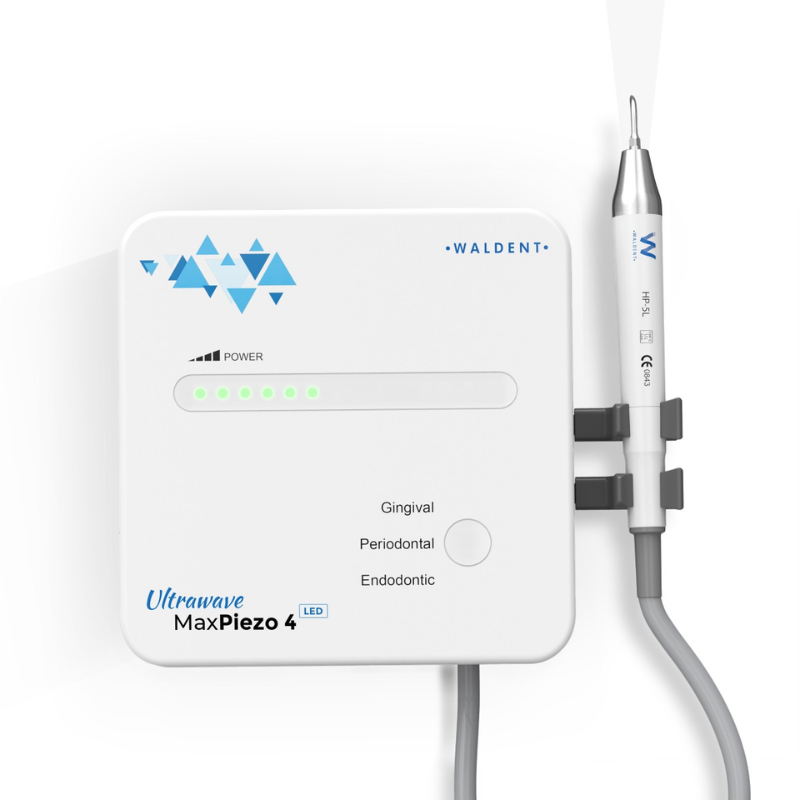

• Integrated LED illumination on the handpiece provides improved visibility of the treatment area.

• Built-in microprocessor intelligently controls working power for customized and comfortable treatment.

• Automatic frequency tracking helps maintain optimal ultrasonic performance during operation.

• Four power settings allow adjustment according to the clinical procedure and patient requirements.

• Built-in irrigation system made with antibacterial materials.

• Detachable and lightweight ergonomic handpiece designed for comfortable handling and easy sterilization.

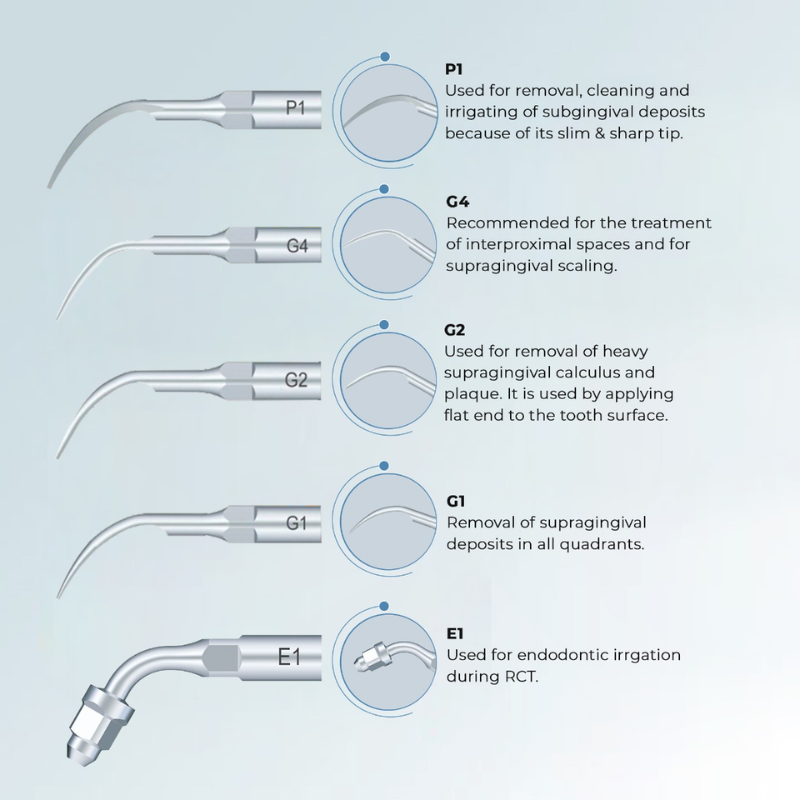

• Compatible with scaler tips for supragingival scaling, subgingival scaling, and endodontic applications.

• Dedicated endodontic tip supports root canal irrigation procedures.

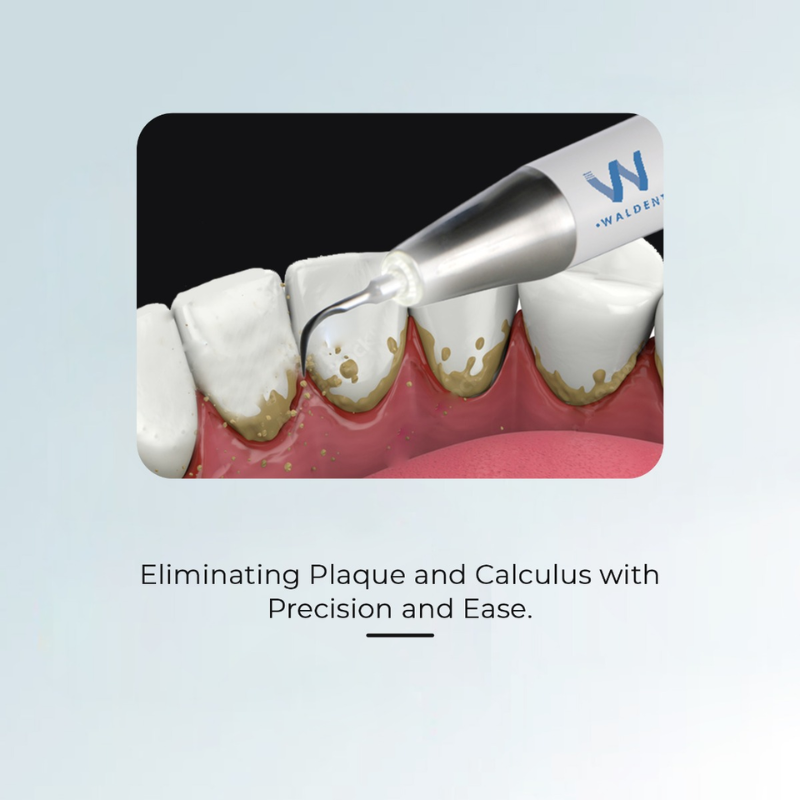

• Suitable for routine prophylaxis, periodontal scaling, calculus removal, and selected endodontic procedures.

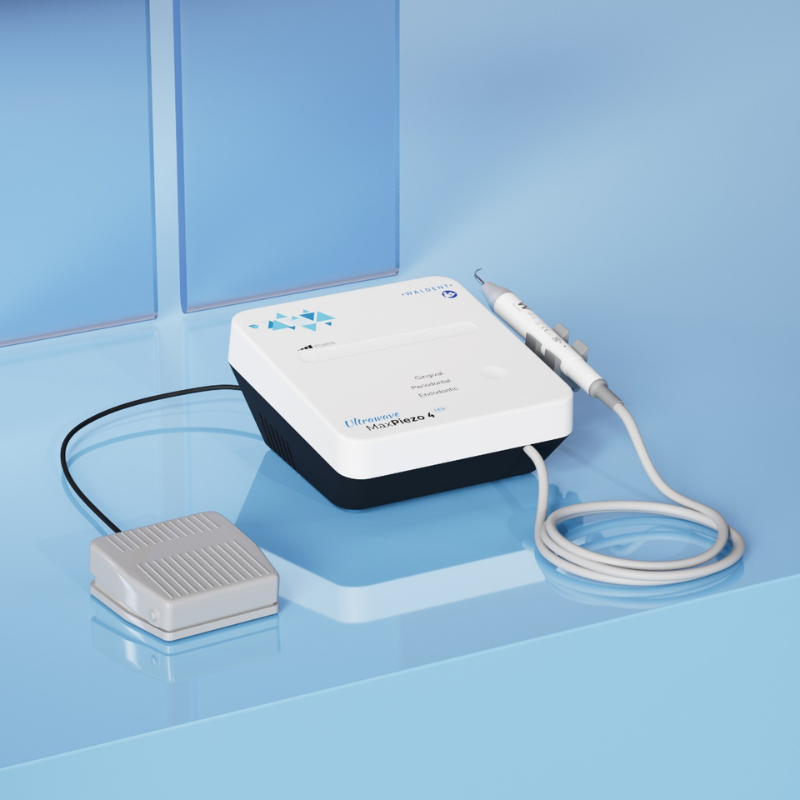

• 1 × Ultrasonic Scaler Handpiece

• 1 × Foot Switch

• 1 × Function Control System with Handpiece Cord

• 1 × Torque Wrench

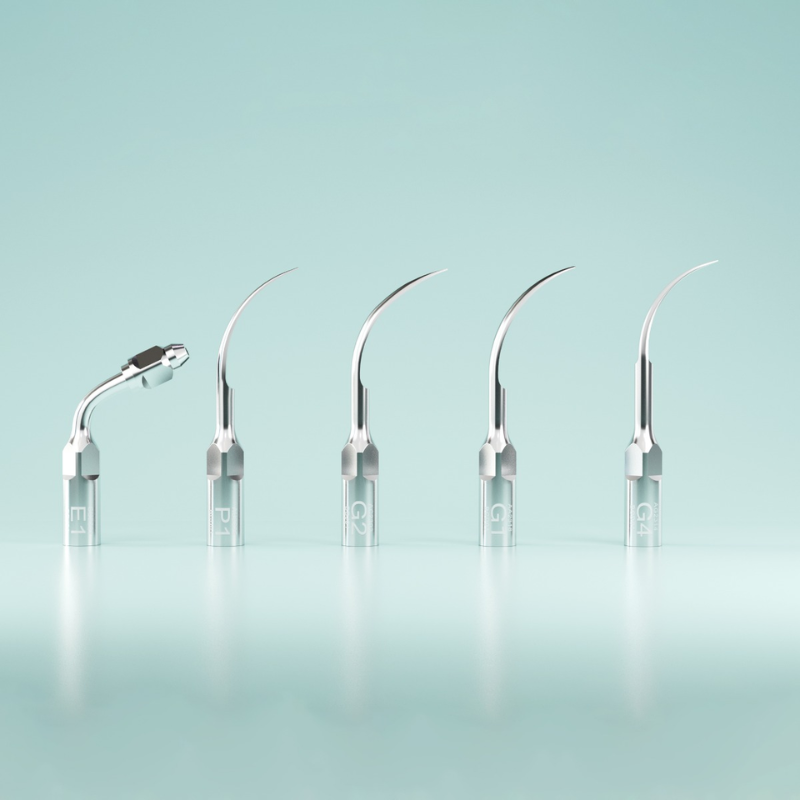

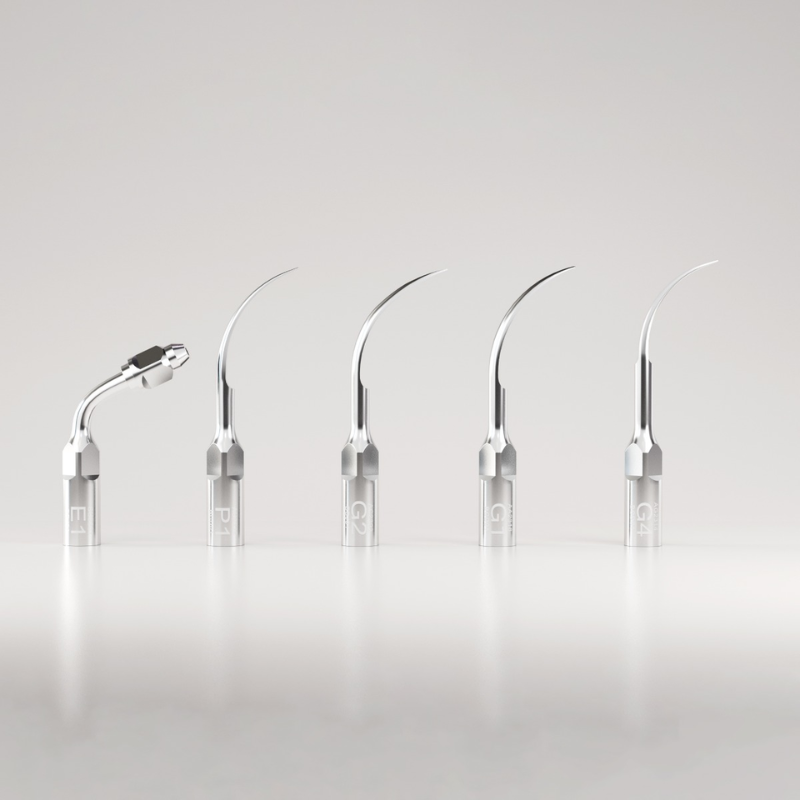

• 5 × Scaler Tips

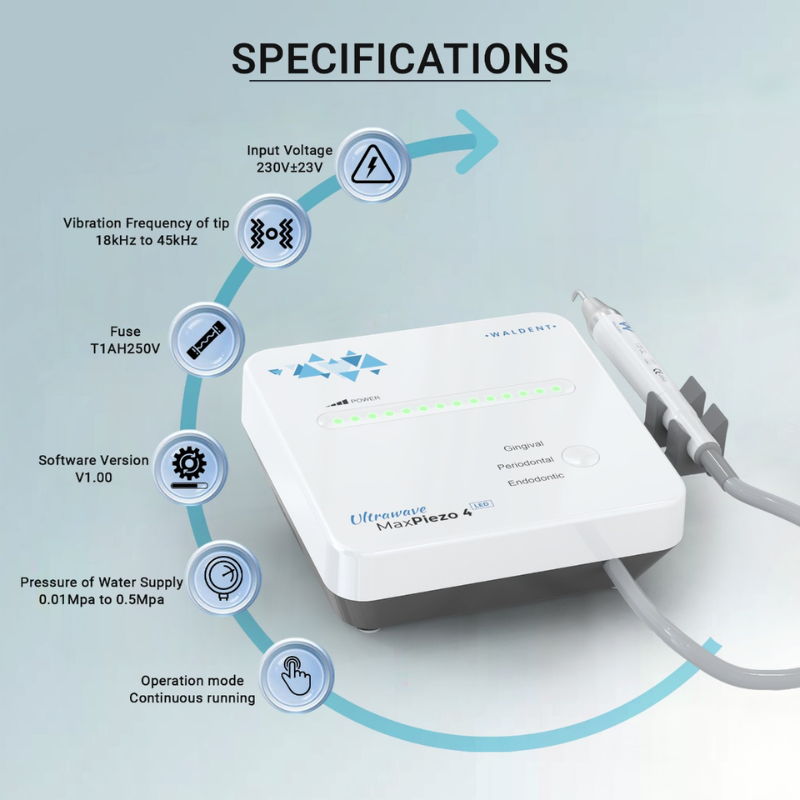

• Product Name: Waldent Ultrawave MaxPiezo 4 LED Ultrasonic Scaler

• Brand: Waldent

• Model: Ultrawave MaxPiezo 4

• Product Type: Piezoelectric Ultrasonic Scaler

• Technology: Piezoceramic Ultrasonic Technology

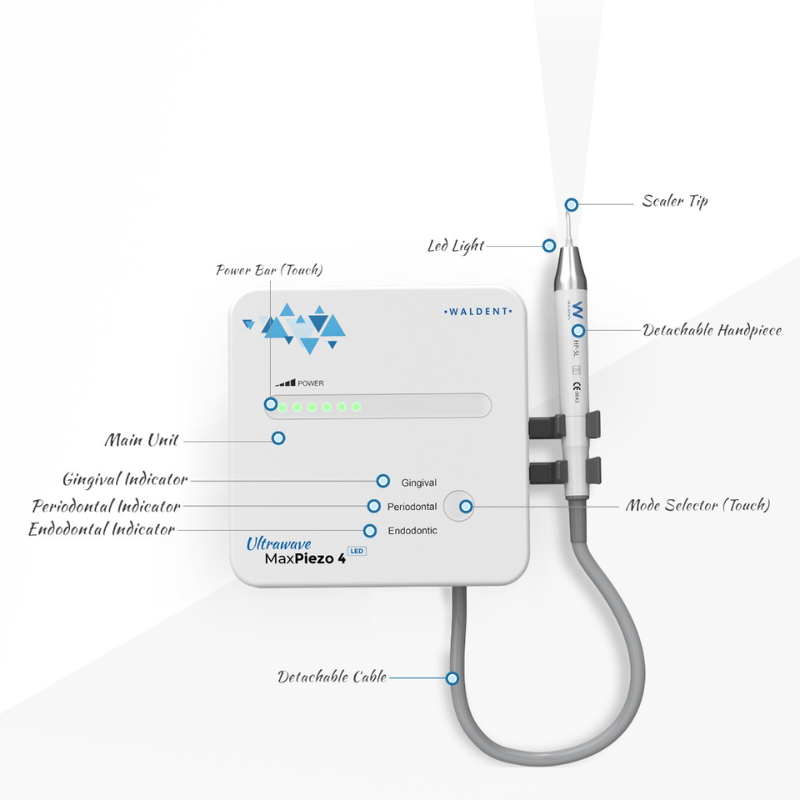

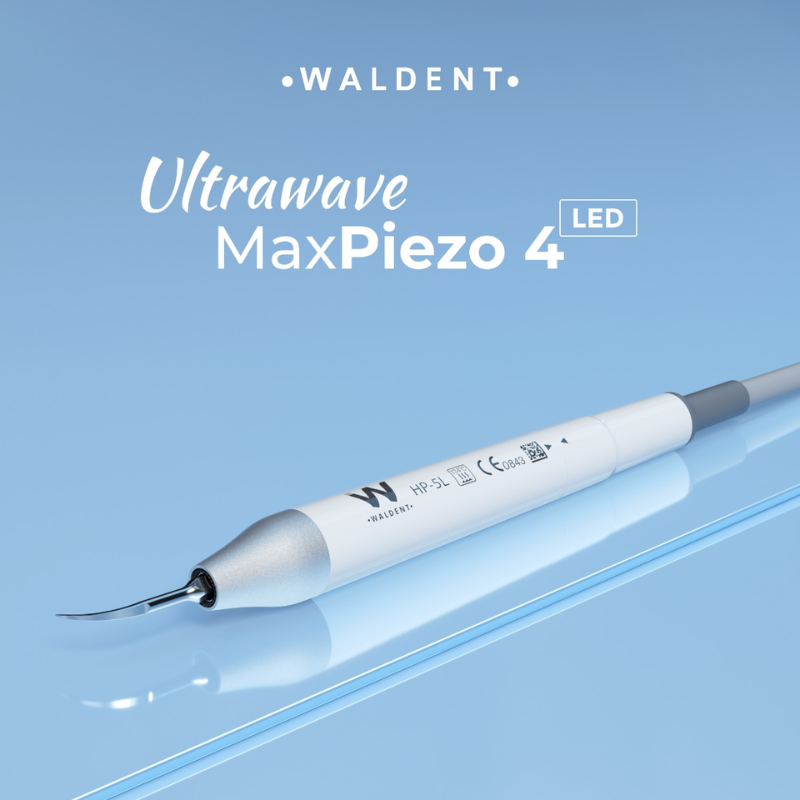

• Handpiece: Detachable LED Handpiece

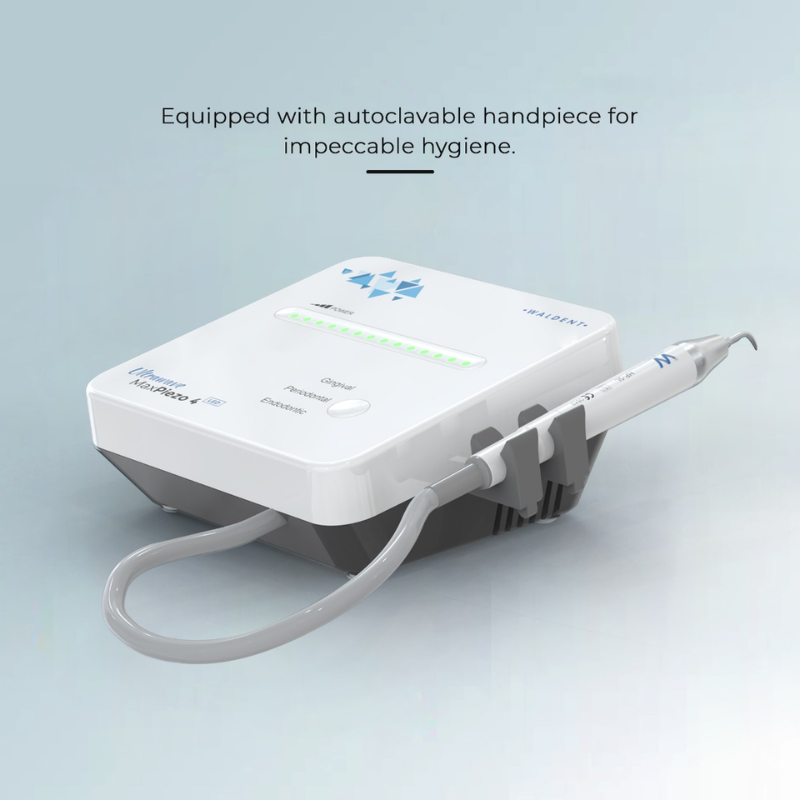

• Handpiece Sterilization: Autoclavable up to 135°C at 0.22 MPa

• Input Voltage: 230 V ± 23 V

• Tip Vibration Frequency: 18 kHz–45 kHz

• Tip Amplitude: Minimum 1 μm, deviation −50%; maximum 100 μm, deviation +50%

• Water Supply Pressure: 0.01 MPa–0.5 MPa

• Fuse: T1AH250V

• Operating Mode: Continuous Running

• Electrical Protection: Class II Equipment

• Applied Part Protection: Type B

• Software Version: V1.00

• Power Settings: 4

• Irrigation: Built-in Water Irrigation System

• Illumination: Integrated LED

• Applications: Supragingival Scaling, Subgingival Scaling, Gingival Cleaning, Plaque and Calculus Removal, Root Canal Irrigation

• Tips Included: 5 Scaler Tips

• Place the ultrasonic scaler on a stable and dry working surface.
• Connect the handpiece, foot switch, and other supplied components correctly before operation.

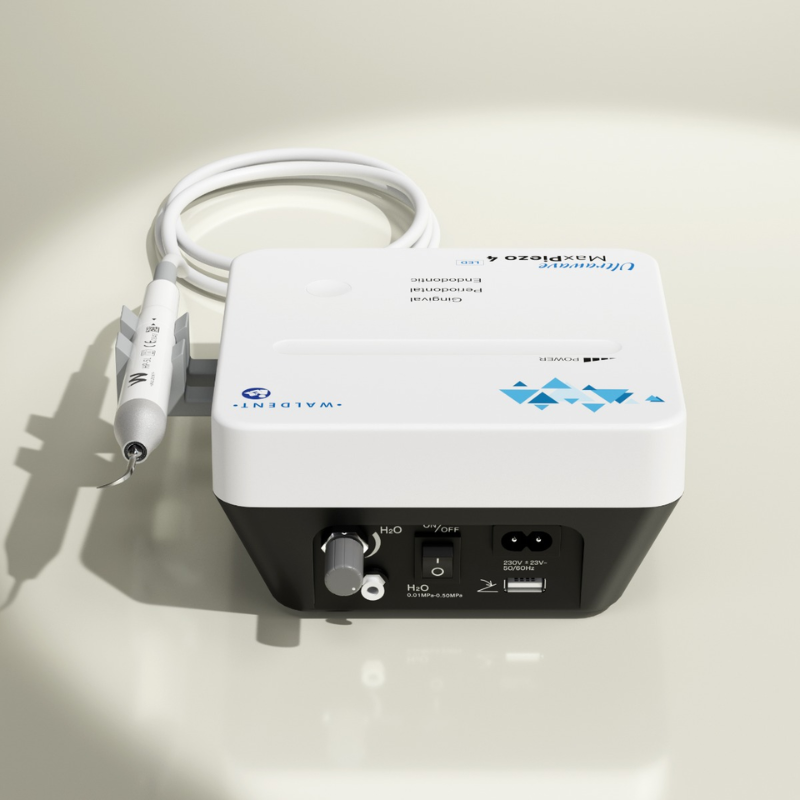

• Connect the unit to a suitable water supply within the specified water-pressure range.
• Select the appropriate scaler tip according to the intended clinical procedure and secure it using the supplied torque wrench.
• Select the required power setting according to the procedure and patient requirements.
• Activate the scaler using the foot switch and ensure adequate water irrigation during operation.
• Use controlled, light-pressure movements appropriate to ultrasonic scaling technique. Avoid unnecessary pressure or prolonged stationary contact of the tip with the tooth surface.
• Use suitable scaling tips for supragingival, subgingival, or endodontic applications.
• After completing treatment, switch off the unit and clean the handpiece and accessories according to the manufacturer’s recommended procedure.
• The detachable handpiece should be properly cleaned and sterilized before reuse. The manufacturer specifies autoclaving of the handpiece at up to 135°C and 0.22 MPa.

• 2 Years Warranty on the Ultrasonic Scaler.

• Physical damage is not covered under warranty.

• The handpiece is designed for sterilization by autoclaving up to 135°C and 0.22 MPa.

• Follow the manufacturer’s cleaning, sterilization, and maintenance instructions to maintain equipment performance and hygiene.

• Use compatible scaler tips and accessories suitable for the MaxPiezo 4 system.

• Warranty claims are subject to the manufacturer’s applicable warranty terms and conditions.
