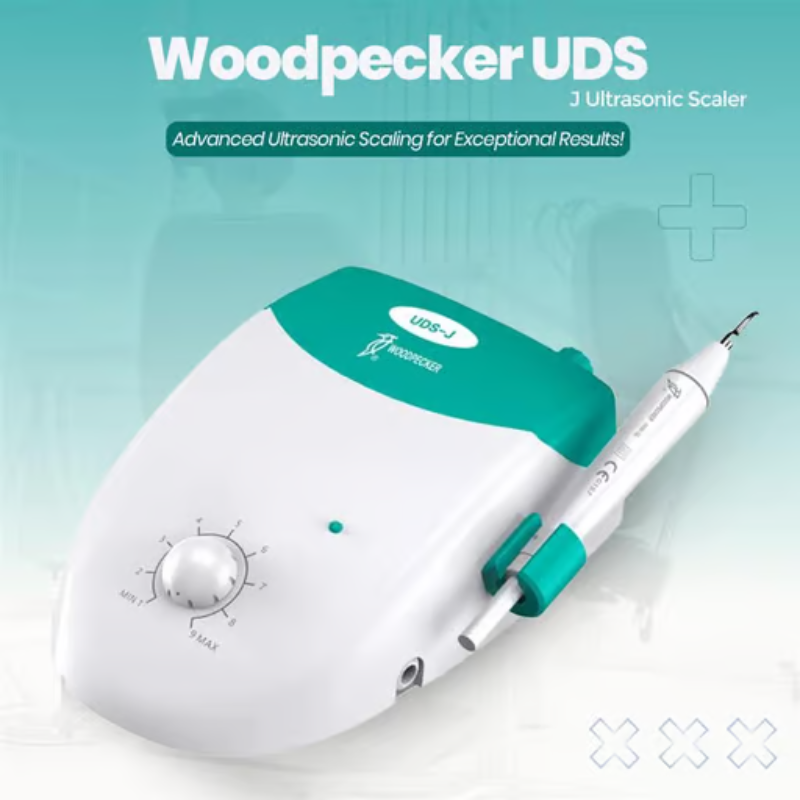

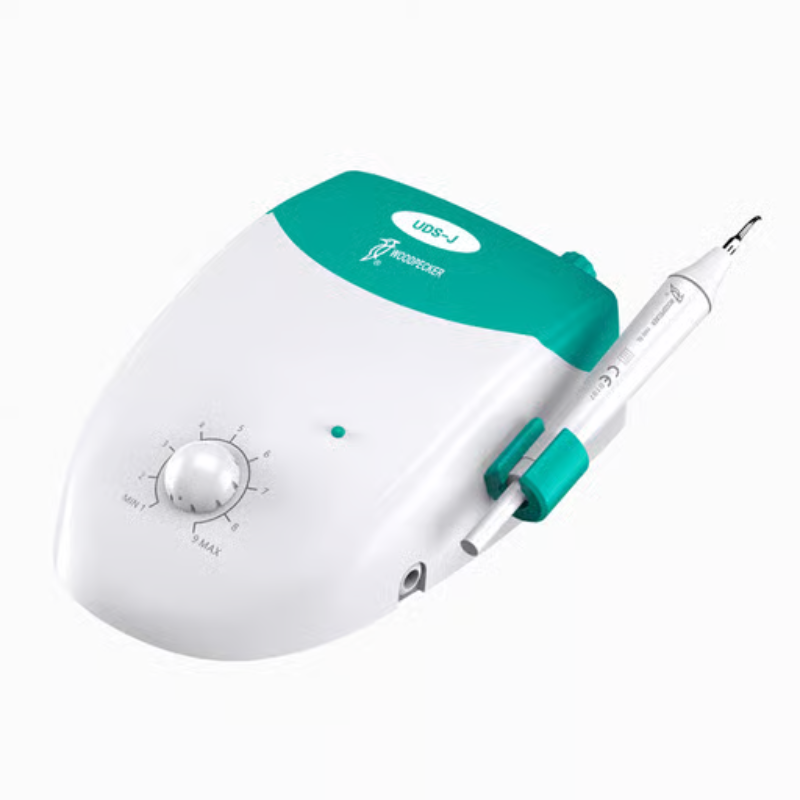

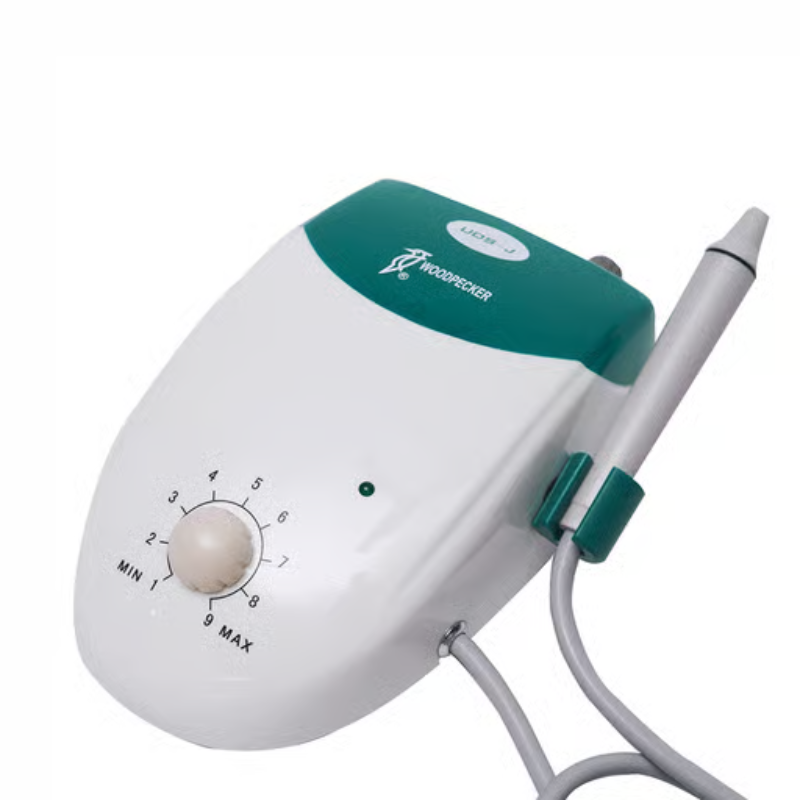

Woodpecker UDS-J Ultrasonic Scaler (5 Scaler Tips FREE)

The Woodpecker UDS-J Ultrasonic Scaler is a digitally controlled dental ultrasonic scaling unit designed primarily for dental calculus elimination, tooth cleaning and preventive dental treatment. According to the manufacturer’s instruction manual, the UDS-J uses automatic frequency tracking to help maintain stable operating performance during scaling procedures.

The unit incorporates an ultrasonic transducer, electronic circuit and water pathway. Its adjustable vibration intensity allows the operator to select a suitable working level according to the clinical requirement and the patient’s sensitivity. The manufacturer specifies a normal operating frequency of 30 kHz ± 3 kHz.

The integrated water control provides spray during operation to cool the handpiece and assist in cleaning the tooth surface. The manual recommends light-touch, controlled back-and-forth movements during scaling and cautions against excessive pressure or prolonged contact of the tip with the tooth surface.

The UDS-J is suitable for dental clinics, hospitals and dental teaching environments where ultrasonic calculus removal and routine scaling are performed. The product is supplied with five scaler tips FREE as indicated in the product title.

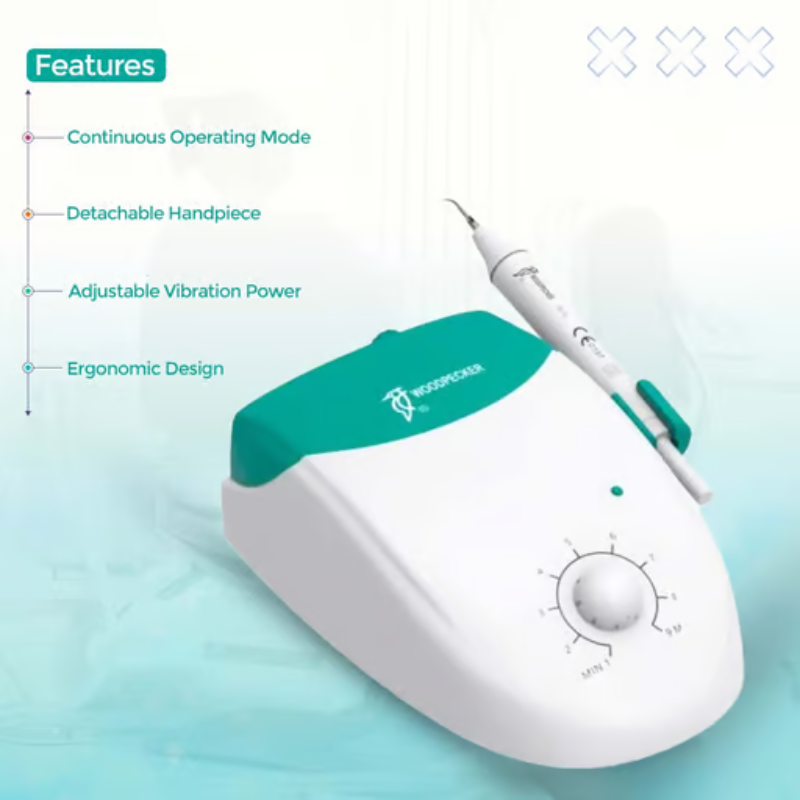

• Digitally controlled ultrasonic scaler designed for dental calculus elimination and routine tooth-cleaning procedures.

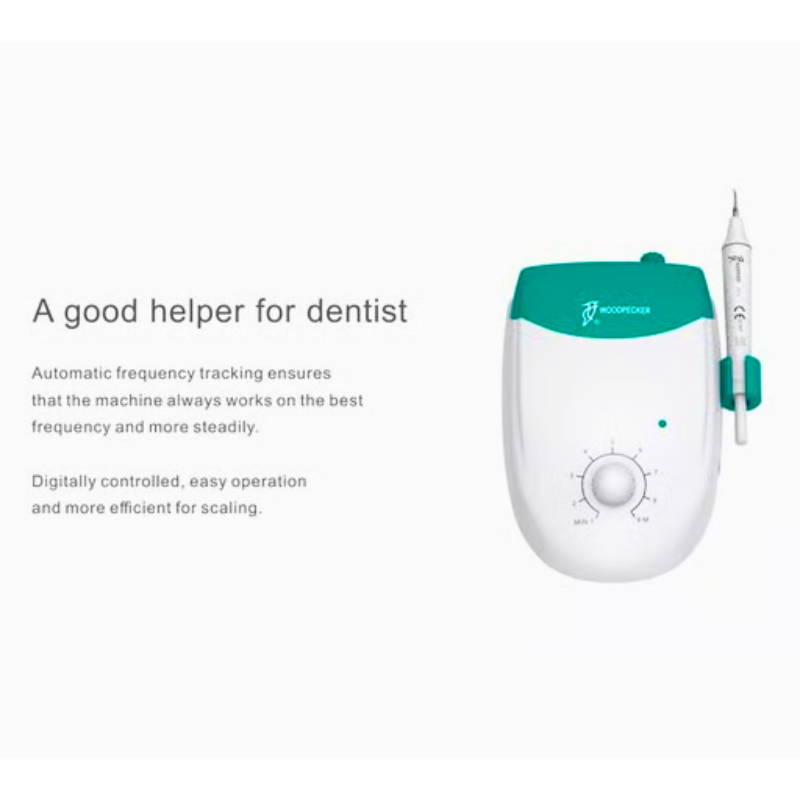

• Automatic frequency tracking helps maintain the scaler at an appropriate operating frequency for stable performance.

• Adjustable vibration intensity allows the operator to adapt the scaling power according to clinical requirements and patient sensitivity.

• Water control system provides spray for cooling the handpiece and cleaning the treatment area.

• Compact ultrasonic scaling unit with dedicated handpiece, footswitch, water connection and power supply.

• Continuous operating mode for routine clinical scaling procedures.

• Ultrasonic tip vibration frequency of 30 kHz ± 3 kHz.

• Output power adjustable from 3 W to 20 W.

• Supplied with 5 scaler tips FREE as specified for this product.

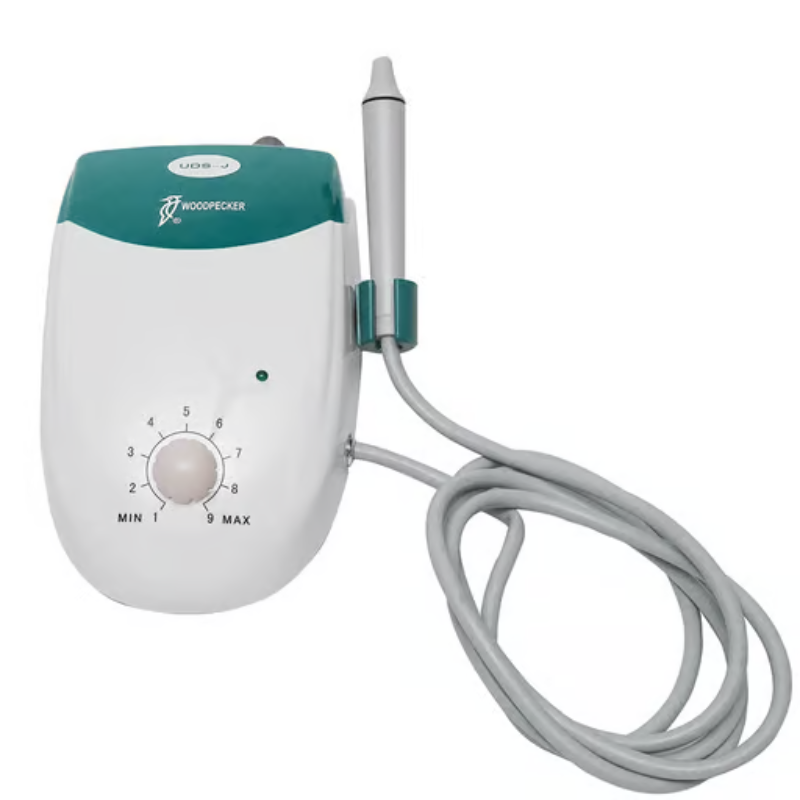

• 1 × Woodpecker UDS-J Ultrasonic Scaler Main Unit

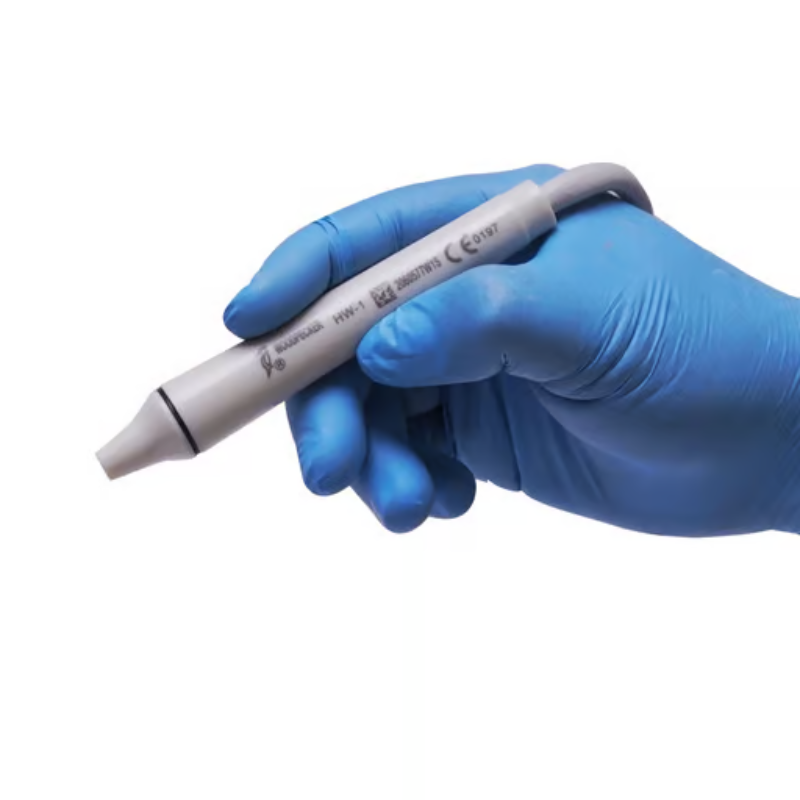

• 1 × Ultrasonic Handpiece

• 1 × Footswitch

• 1 × Power Supply / Adapter

• 1 × Water Tube / Water Connection

• 1 × Scaling Tip Wrench / Torque Wrench

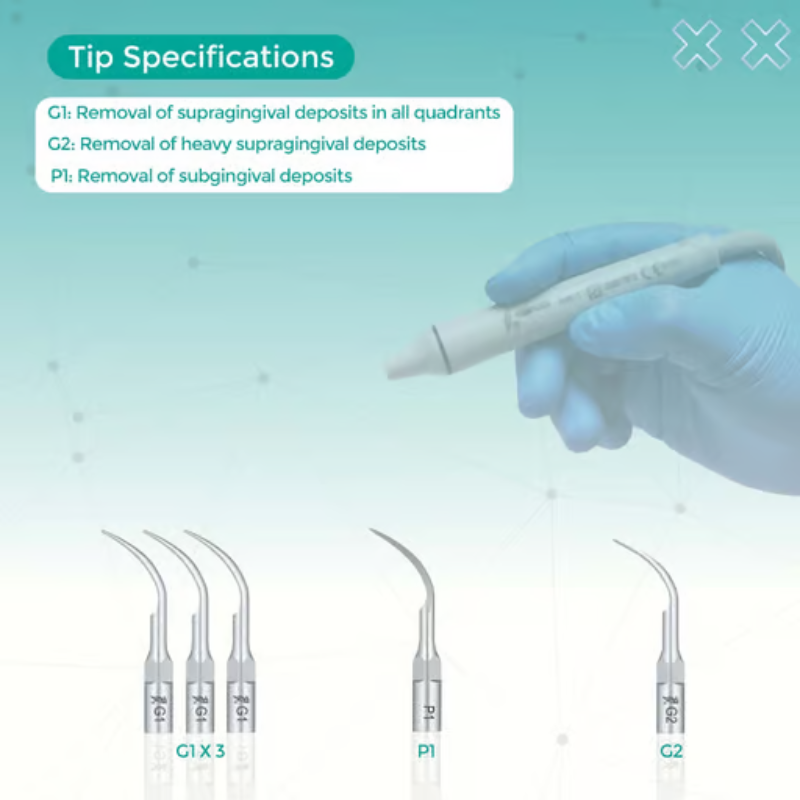

• 5 × Scaler Tips FREE

• User Instruction Manual

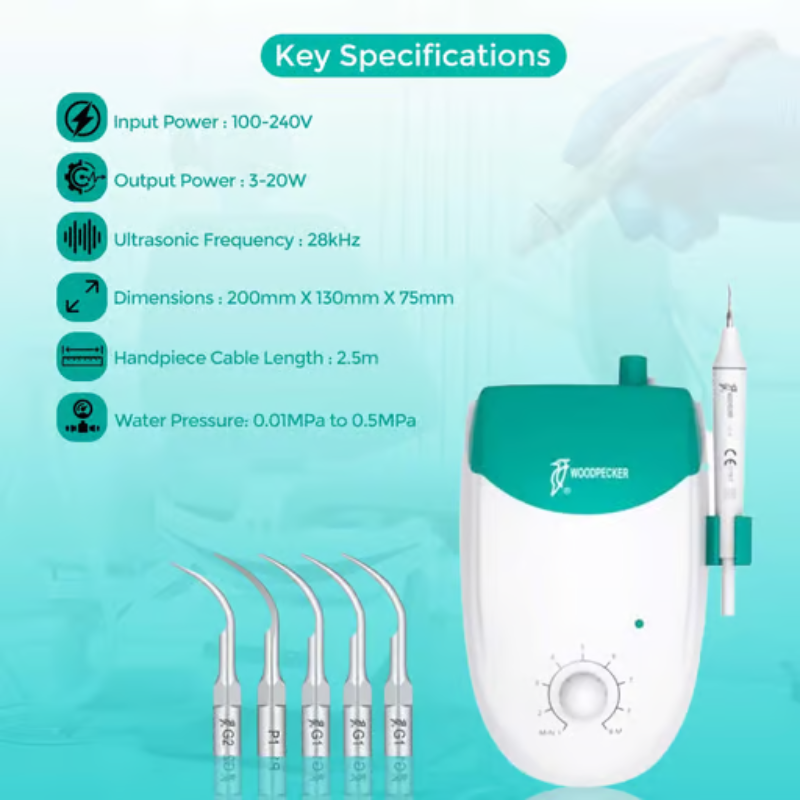

• Product Name: Woodpecker UDS-J Ultrasonic Scaler

• Brand: Woodpecker

• Model: UDS-J

• Product Type: Ultrasonic Dental Scaler

• Primary Application: Dental Calculus Elimination

• Operating Mode: Continuous Operation

• Output Power: 3 W–20 W

• Output Tip Vibration Frequency: 30 kHz ± 3 kHz

• Output Half-Excursion Force: <2 N

• Output Primary Tip Vibration Excursion: ≤100 μm

• Water Pressure: 0.01 MPa–0.5 MPa

• Power Supply Input: 220–240 V~, 50/60 Hz, 150 mA

• Main Unit Input: 24 V~, 50/60 Hz, 1.3 A

• Main Unit Fuse: T1.6AL 250V

• Power Supply Fuse: T0.5AL 250V

• Main Unit Weight: 0.8 kg

• Power Supply Weight: 1 kg

• Applied Parts: Handpiece and Scaling Tip

• Electrical Protection: Class II equipment

• Applied-Part Protection: Type BF

• Water Ingress Protection: Ordinary Equipment (IPX0), Footswitch IPX1

• Scaler Tip Quantity: 5 Tips FREE

The technical specifications above are taken from the UDS-J manufacturer instruction manual.

• Place the UDS-J main unit on a stable and suitable working surface.
• Connect the footswitch to its designated socket.
• Connect the water tube to the water inlet and use a clean water source.
• Connect the power supply and switch on the main unit.
• Before starting, set the potentiometer to the required initial position as instructed by the manufacturer.
• Attach the appropriate scaling tip securely to the handpiece using the supplied wrench.
• Start the unit using the footswitch and adjust the water flow to produce an adequate spray.
• Set the vibration intensity according to the procedure and patient sensitivity.
• During scaling, use light pressure and controlled back-and-forth movements. Avoid excessive force or holding the tip against the tooth surface for prolonged periods.
• Maintain adequate water spray to cool the handpiece and clean the treatment area.
• After completing the procedure, keep the machine operating with water supply for approximately 30 seconds to clean the handpiece and scaling tip.
• Remove the scaling tip after use and follow the recommended sterilization procedure.

• Product should be operated and maintained according to the manufacturer’s instructions.

• Scaling tips and the wrench can be autoclaved at 134°C, 2.0–2.3 bar (0.20–0.23 MPa) for 4 minutes, as specified in the instruction manual.

• The scaling tip and wrench may also be cleaned using an ultrasonic cleaner.

• The handpiece may be cleaned and sterilized using a neutral sterilizing solution; the manual specifically states not to sterilize the handpiece under high temperature and pressure.

• Do not soak the torque wrench in solution, dip it in iodine, alcohol or glutaraldehyde, or place it in an oven or microwave, as these methods are prohibited by the manufacturer.

• Store the equipment in a cool, dry and ventilated place and protect it from vibration.

• The manufacturer advises caution or restrictions for patients with hemophilia, patients or doctors with heart pacemakers, and advises caution when used with patients having heart disease, pregnant women and children.

• Turn off the equipment and disconnect the power plug when not in use.

Manufacturer/Importer Warranty of 1 Year on all the parts of the product.
